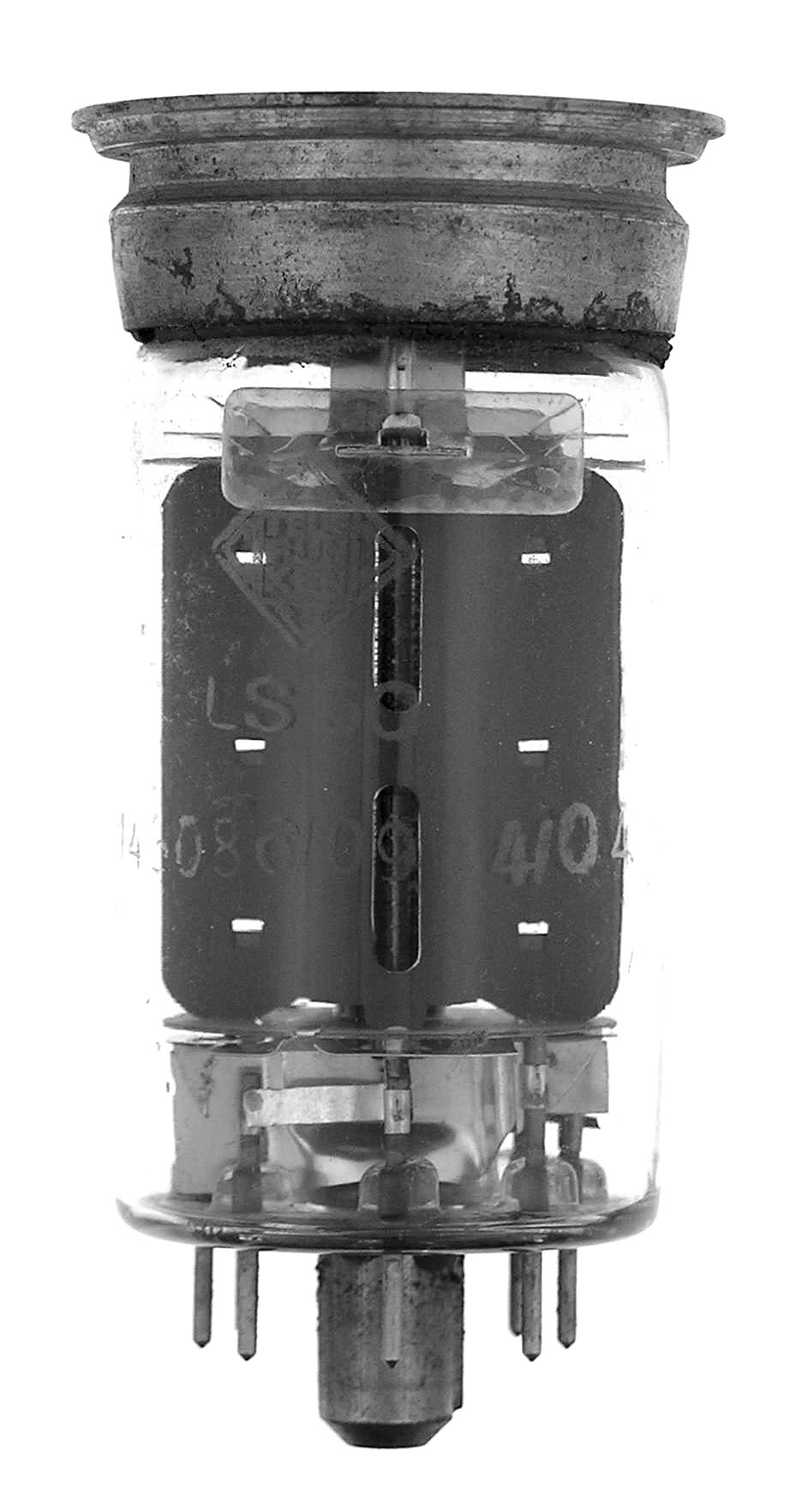

LS50

The LS50 is a pentode designed for use as an amplifier up to 200 MHz. This tube was also used in pulse service in WWII by the German Luftwaffe.

Length = 3.62" Diameter = 1.75"
Max voltage = 1000
Max current = 230 ma
Fil voltage = 12.6
Fil current = .7 amp         GOTO INDEX
