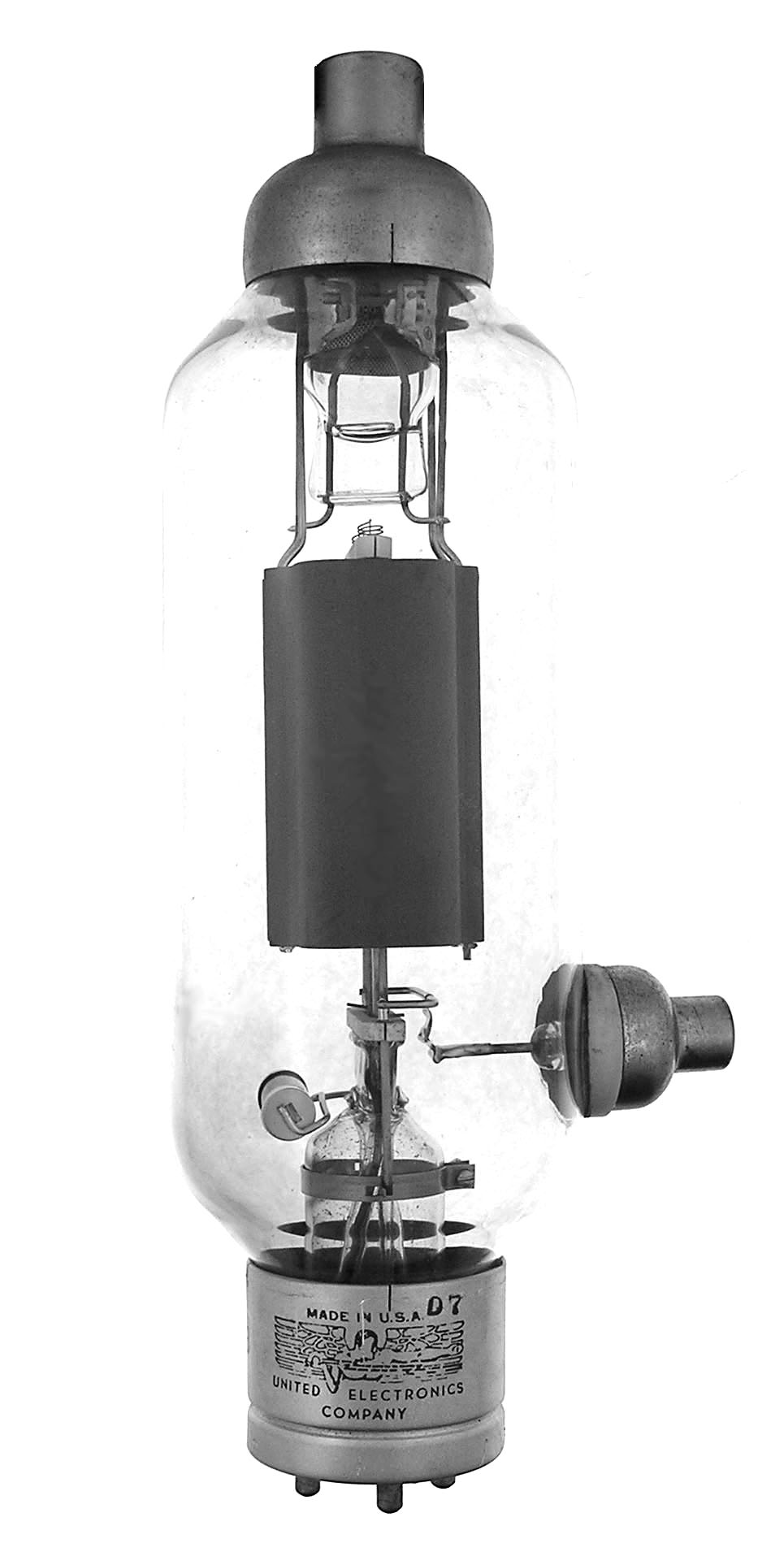

KU-23

The KU-23 is a 200 watt triode with a mu of 23 and a maximum frequency for full output of 30 MHz.

Length = 10.25" Diameter = 3.00"
Max voltage =3000
Max current = 275 ma
Fil voltage = 11
