KI-620

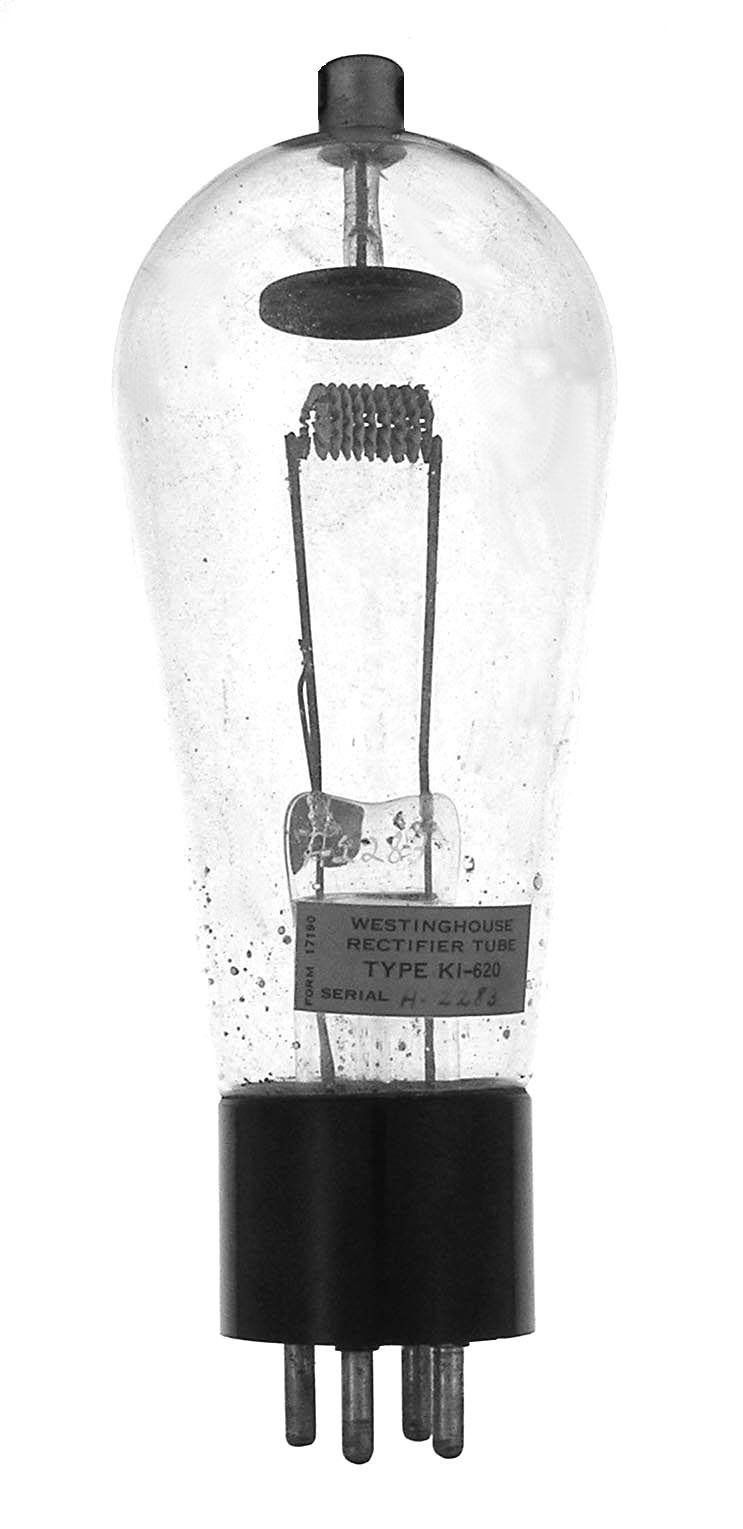

The KI-620 is a mercury vapor rectifier made by Westinghouse.

Length = 8.50" Diameter = 3.00"
Max voltage = 5000 piv
Max current = 4 amp
Fil voltage = 5
Fil current = 11.5 amps         GOTO INDEX
