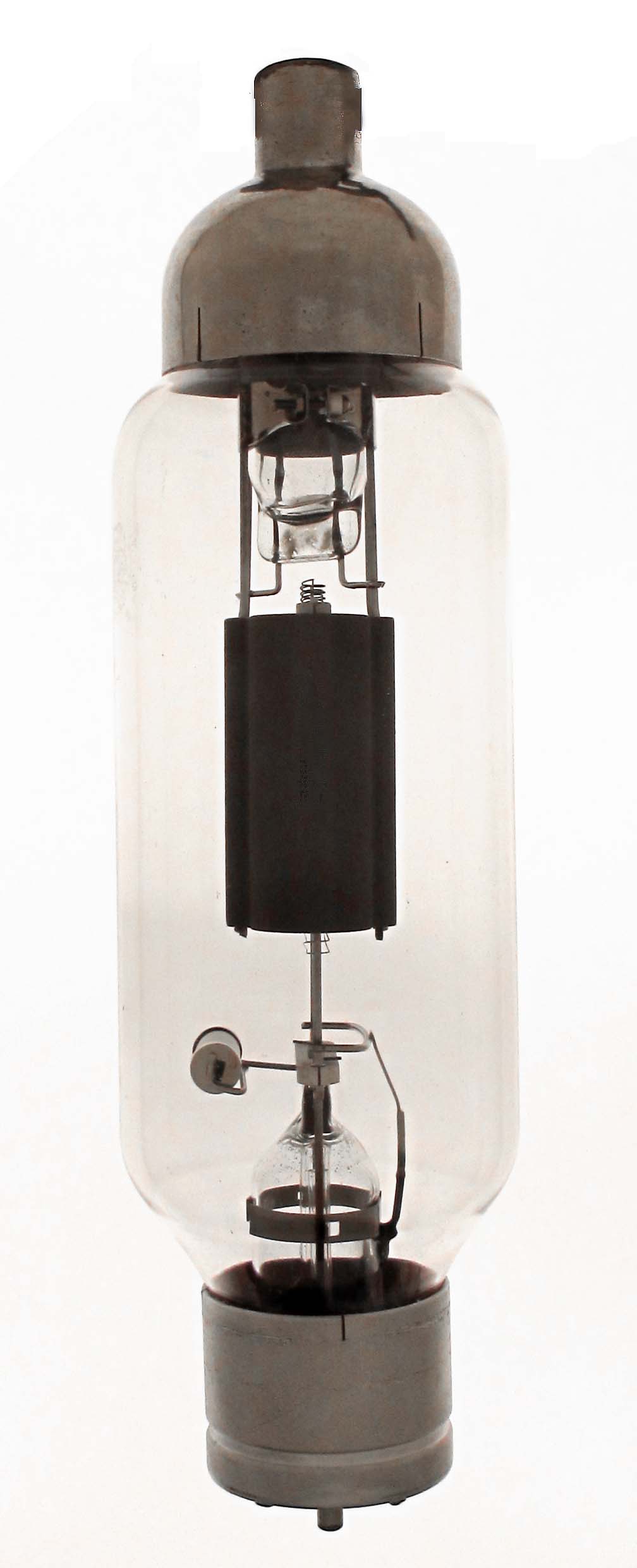

K-375

The K-375 is a 150 watt triode with a mu of 18 and usable at full ratings to 30 MHz. This tube was made for Kabar by United and is identical to their UE-468.

Length = 10.62" Diameter = 2.87"
Max voltage = 2500
Max current = 200 ma
Fil voltage = 10
Fil current = 4 amps         GOTO INDEX
