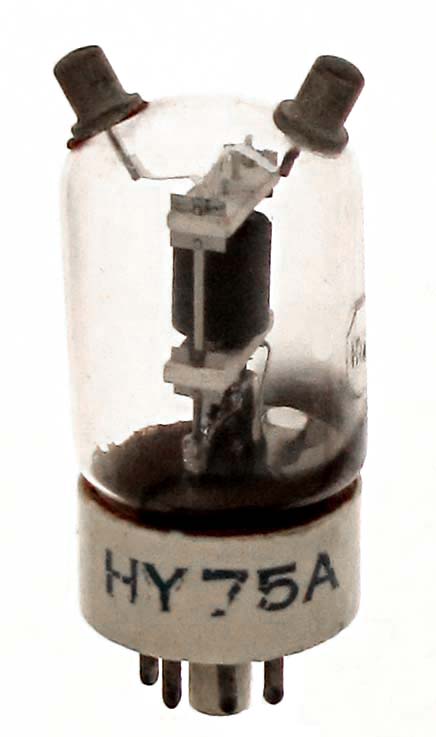

HY75A

The HY75A is a 15 watt general purpose triode with a mu of 10 designed for UHF applications up to 220 MHz with reduced input. It is an uprated version of the HY75. Made by Hytron.

Length = 3.31" Diameter = 1.37"
Max voltage = 450
Max current = 90 ma
Fil voltage = 6.3 volts
Fil current = 2.6 amps         GOTO INDEX
