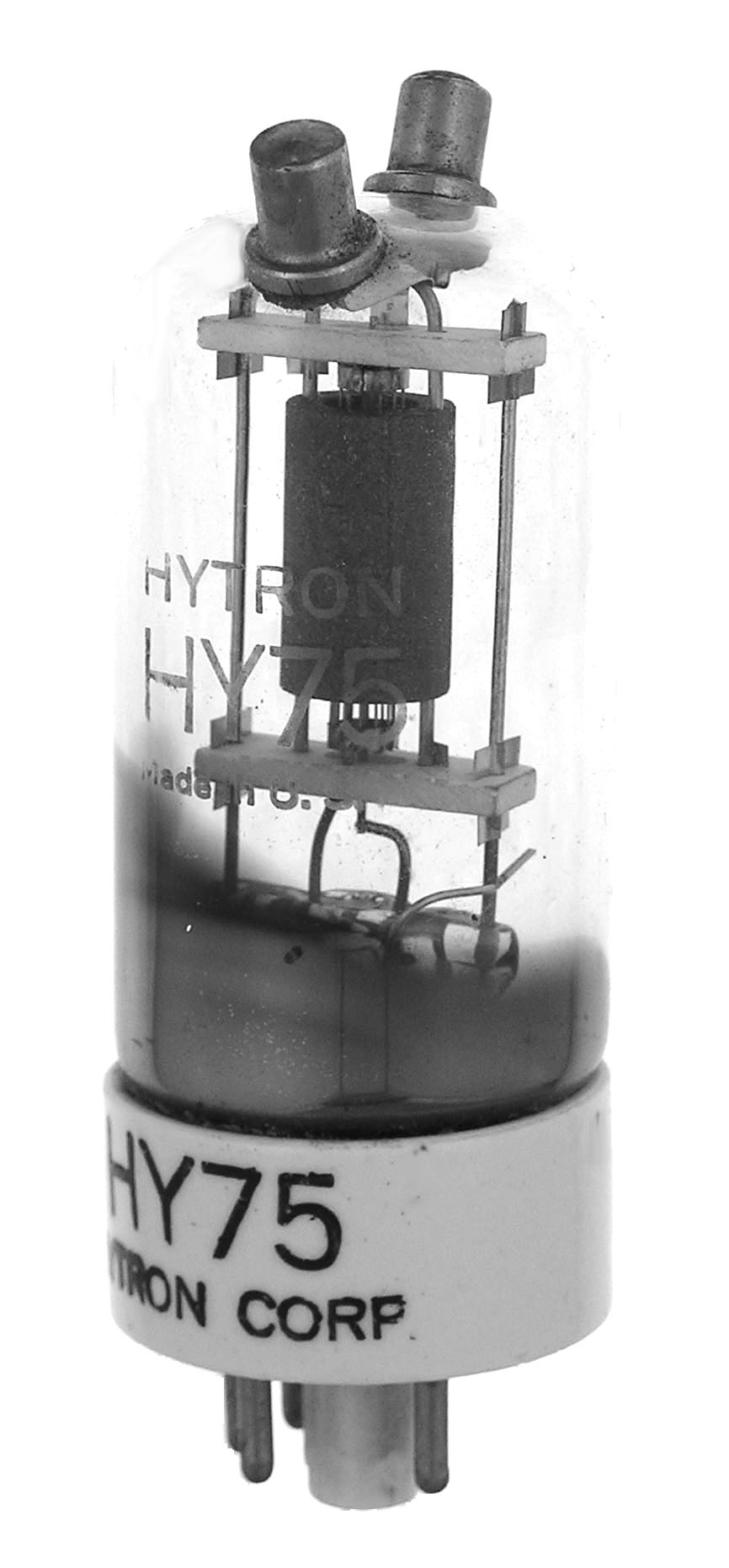

HY75

The HY75 is a 15 watt general purpose triode with a mu of 10 (8 later production) designed for UHF applications up to 220 MHz with reduced input. Replaced by the HY75A. Made by Hytron.

Length = 3.75" Diameter = 1.37"
Max voltage = 450
Max current = 80 ma
Fil voltage = 6.3 volts
Fil current = 2.6 amps
Data sheet:
