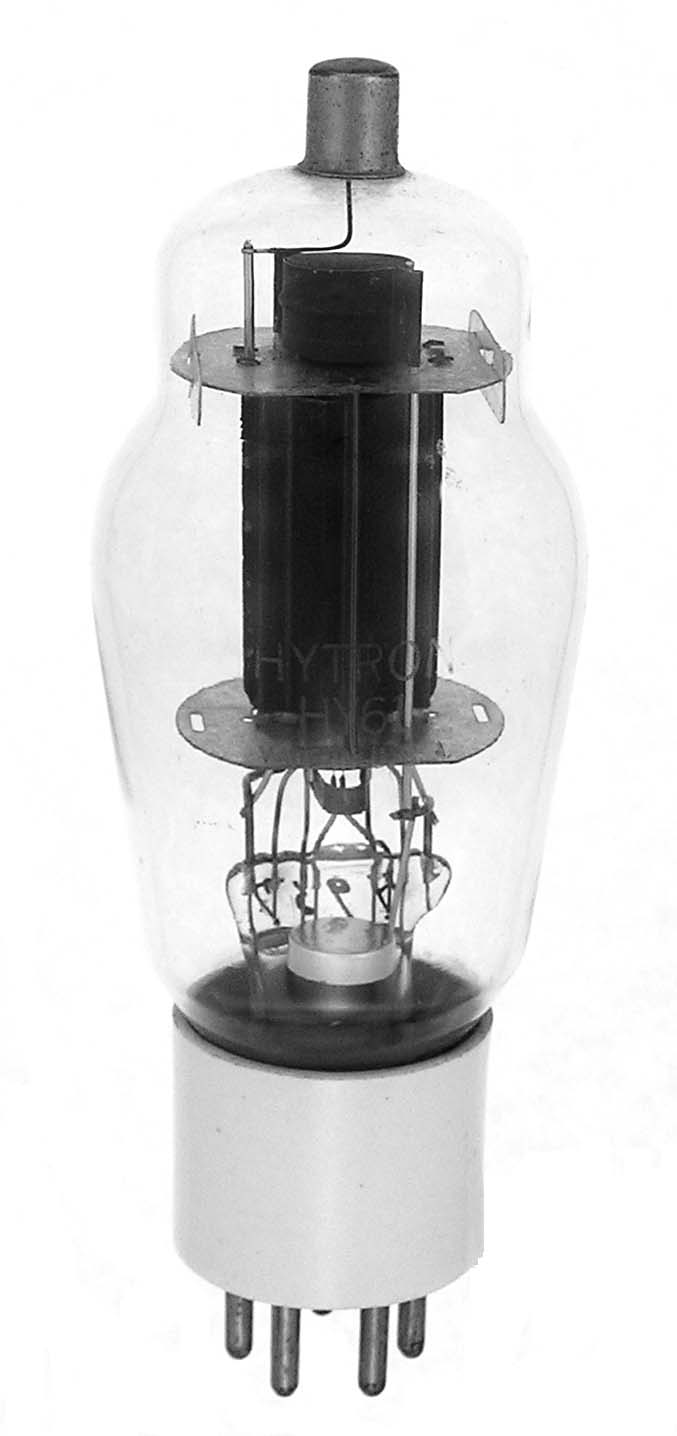

HY61

The HY61 or HY61/807 is a 25 watt dissipation pentode made by Hytron.

Length = 5.50" Diameter = 1.87"
Max voltage = 600
Max current = 120 ma (originally 100 ma)
Fil voltage = 6.3
Fil current = .9 amps         GOTO INDEX
