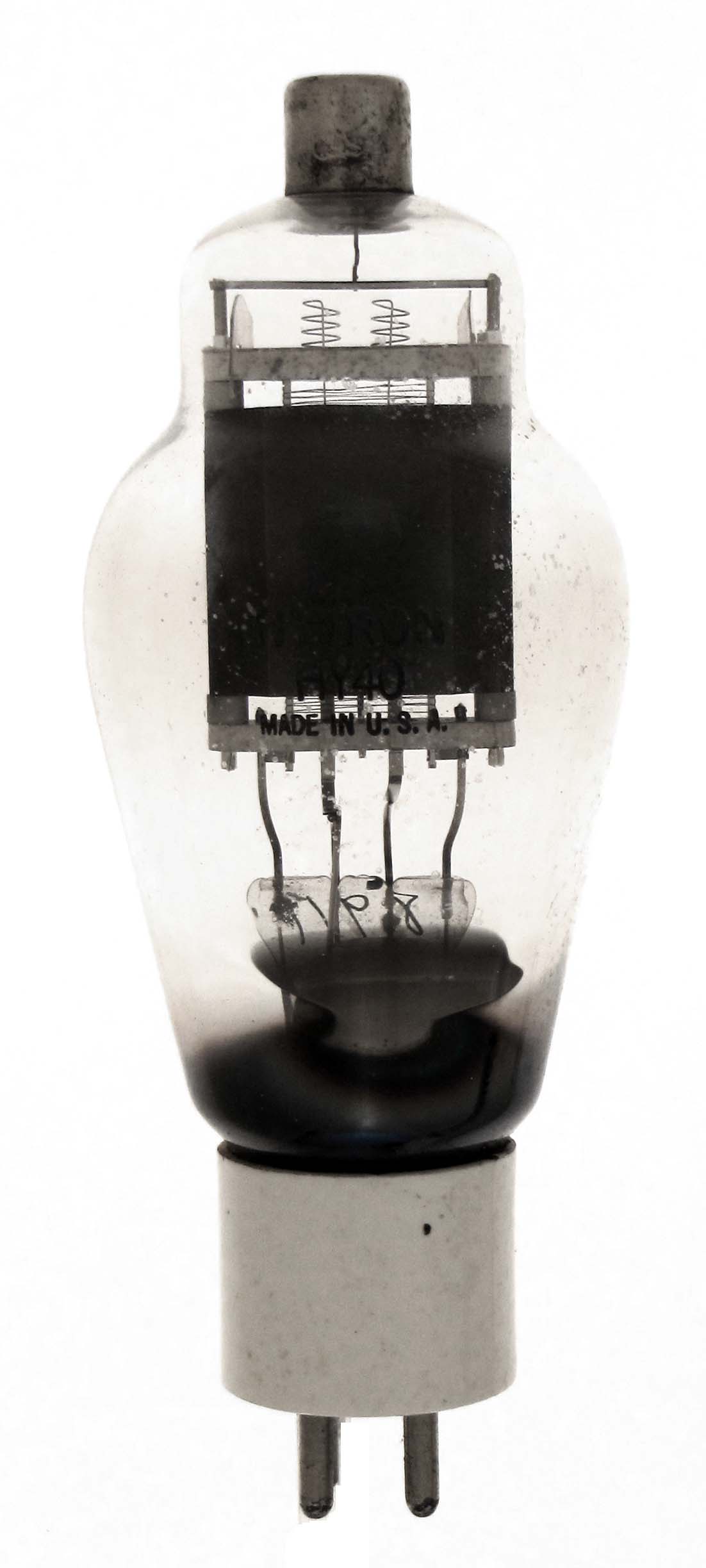

HY40

The HY40 is a 40 watt general purpose triode with a mu of 25. Made by Hytron it has maximum ratings to 60 MHz.

Length = 6.25" Diameter = 2.25"
Max voltage = 1000 VDC
Max current = 125 ma
Fil voltage = 7.5 volts
Fil current = 2.25 amps         GOTO INDEX
