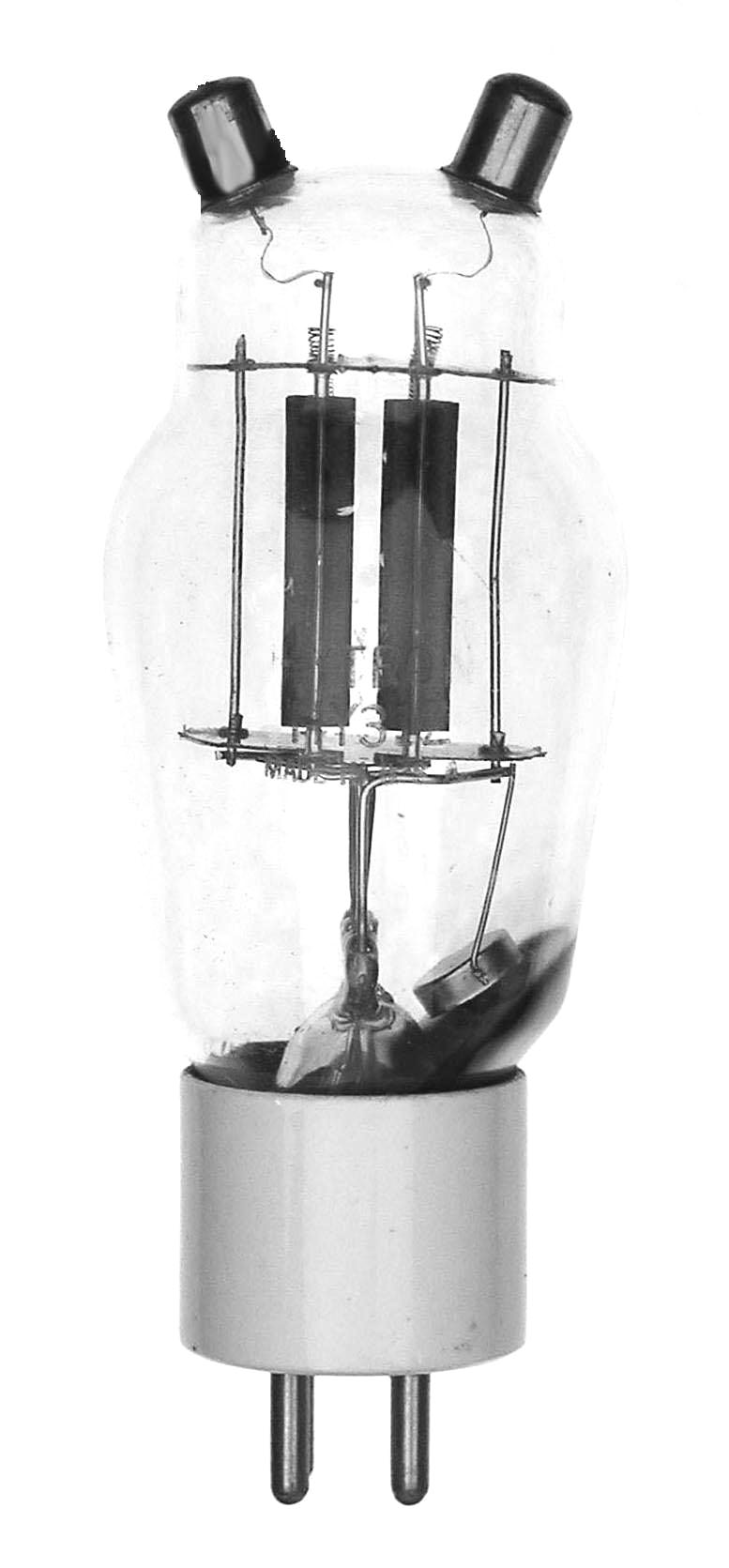

HY31Z

The HY31Z is a 30 watt dissipation dual triode with a mu of 45 and a maximum frequency of 60 MHz. This tube was designed by Hytron to be operated at zero bias.

Length = 5.37" Diameter = 1.87"
Max voltage = 500
Max current = 150 ma
Fil voltage = 6.3 or 12.6
Fil current = 3.5 or 1.7 amps         GOTO INDEX
