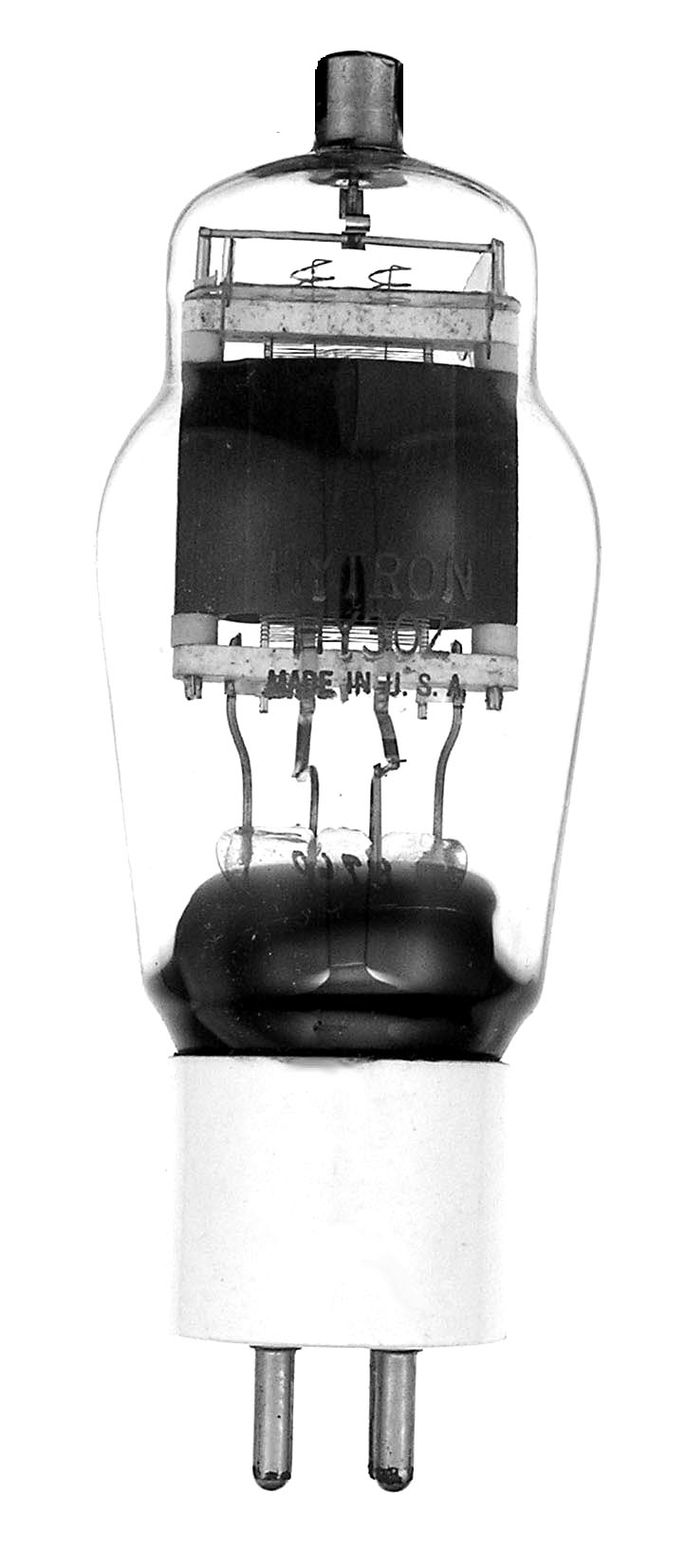

HY30Z

The HY30Z is a 30 watt triode with a mu of 87 designed for zero bias operation. Made by Hytron.

Length = 5.50" Diameter = 1.87"
Max voltage = 850
Max current = 90 ma
Fil voltage = 6.3
Fil current = 2.25         GOTO INDEX
