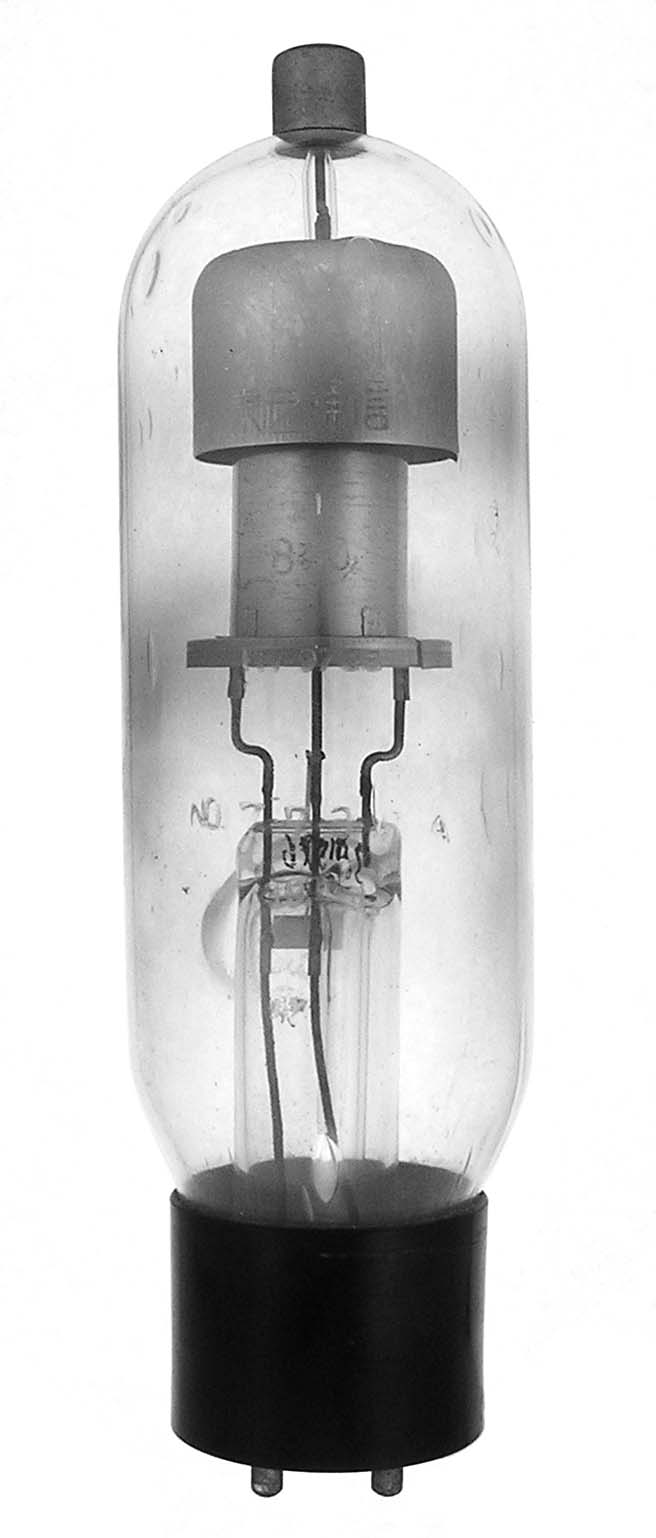

The HV-972B is a half-wave rectifier similar to the 872 but no sign of mercury. Japanese made and also marked as an 840.
Length = 8.25" Diameter = 2.25"
Max voltage = 18,000 piv
Max current = .8 amps average
Fil voltage = 5
Fil current = 10 amps GOTO INDEX
