HK-54

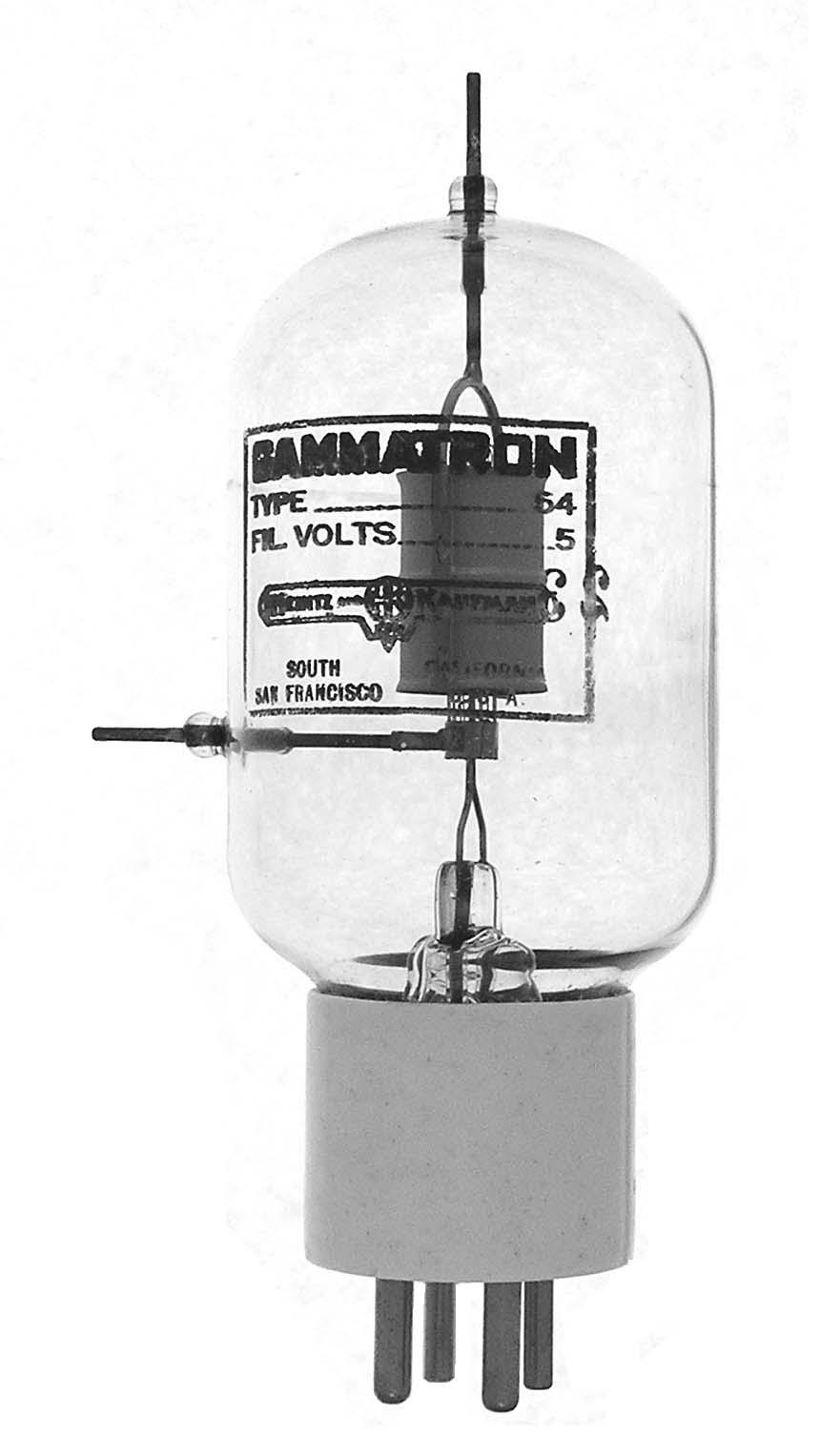

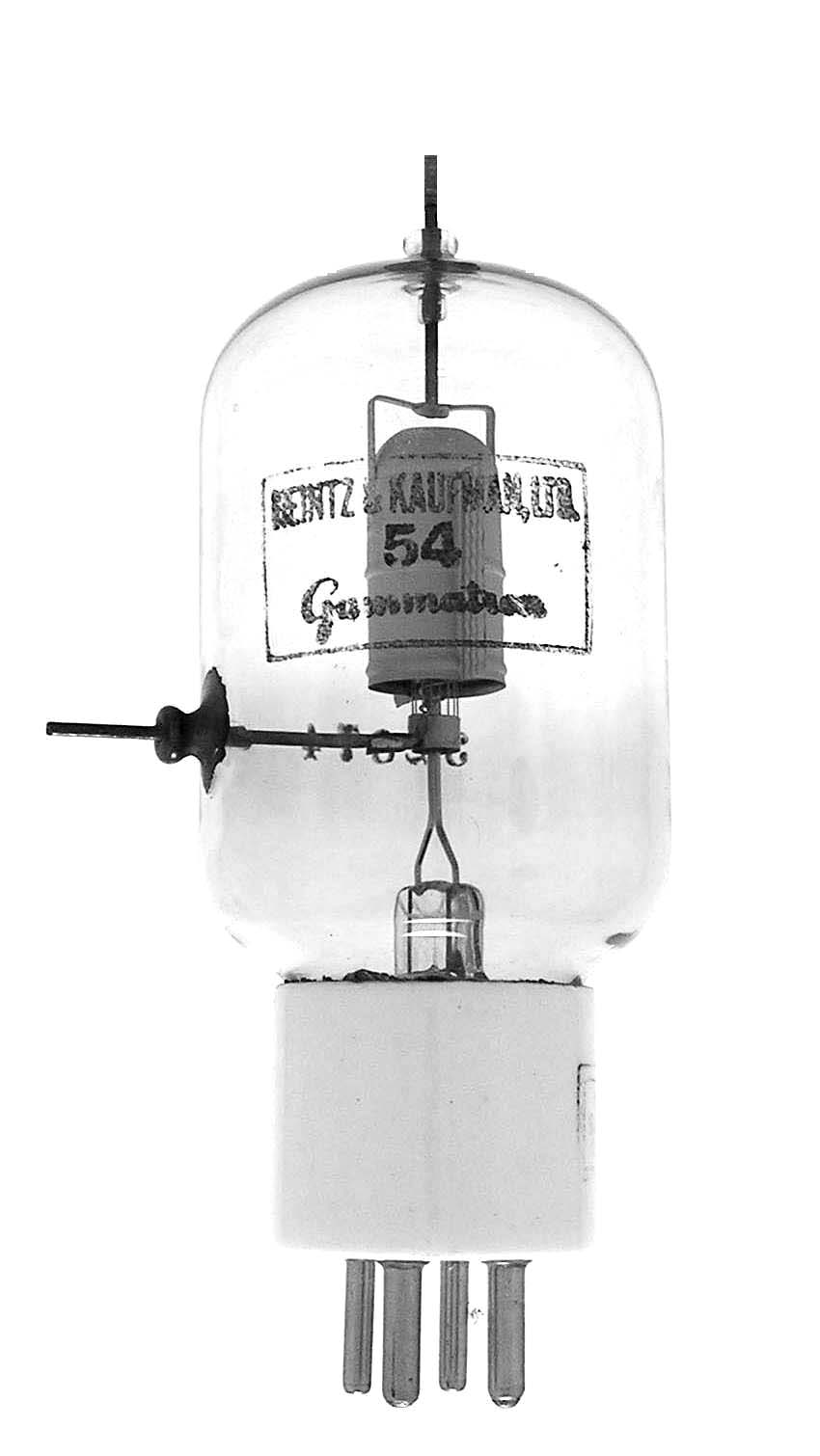

The HK-54 is a 50 watt dissipation triode with a mu of 27 and full ratings to 100 MHz. Early units had open topped anodes as in the first example.

Length = 5.25" Diameter = 1.87"
Max voltage = 3000
Max current = 150 ma
Fil voltage = 5
Fil current = 5 amps
Data sheet:
