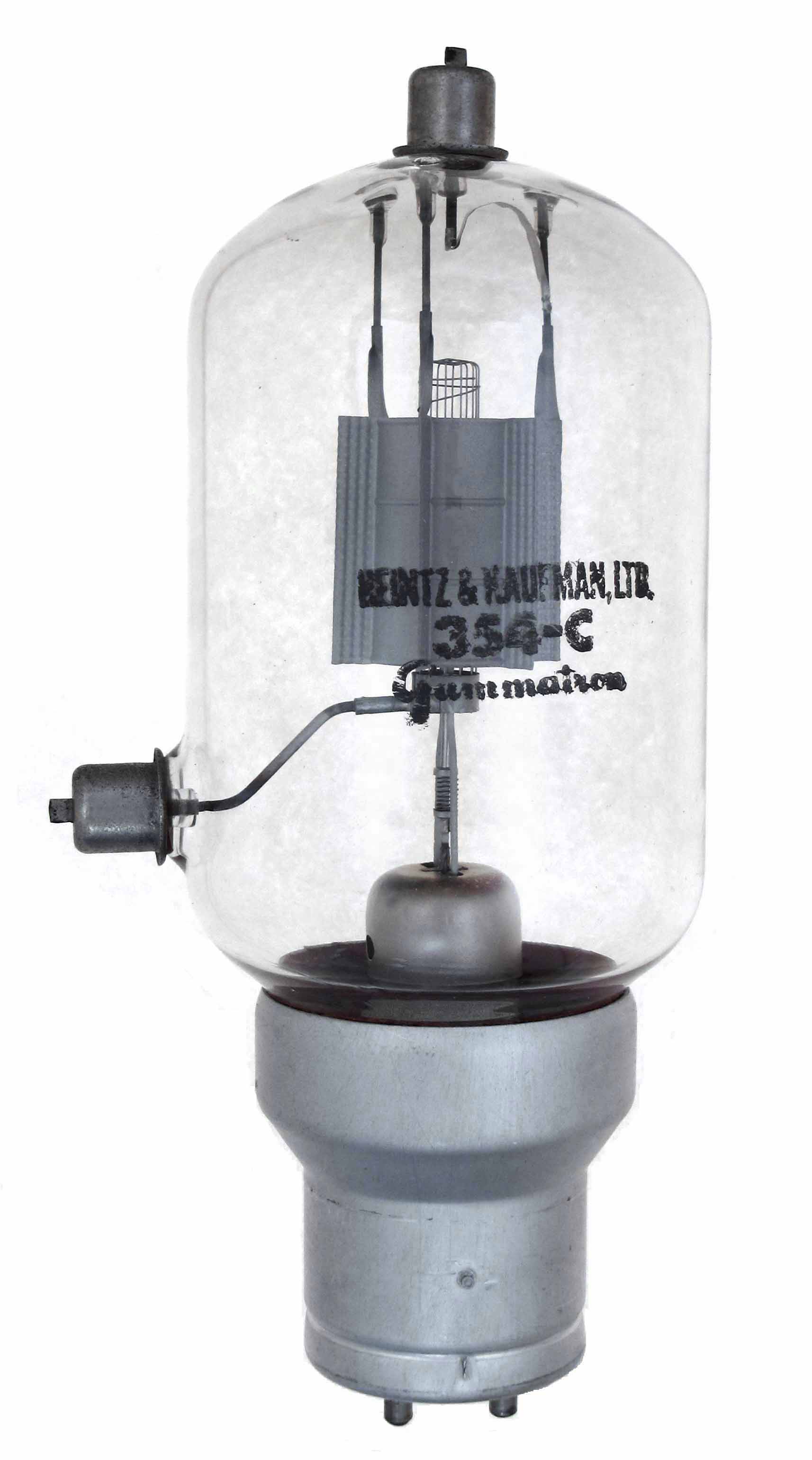

HK-354C

The HK-354C is a 150 watt dissipation triode made with the side grid for higher frequency applications than the HK-354. It has the same mu as the HK-354 (14).

Length = 8.50" Diameter = 3.12"
Max voltage = 4000
Max current = 300 ma
Fil voltage = 5
Fil current = 10 amps         GOTO INDEX
