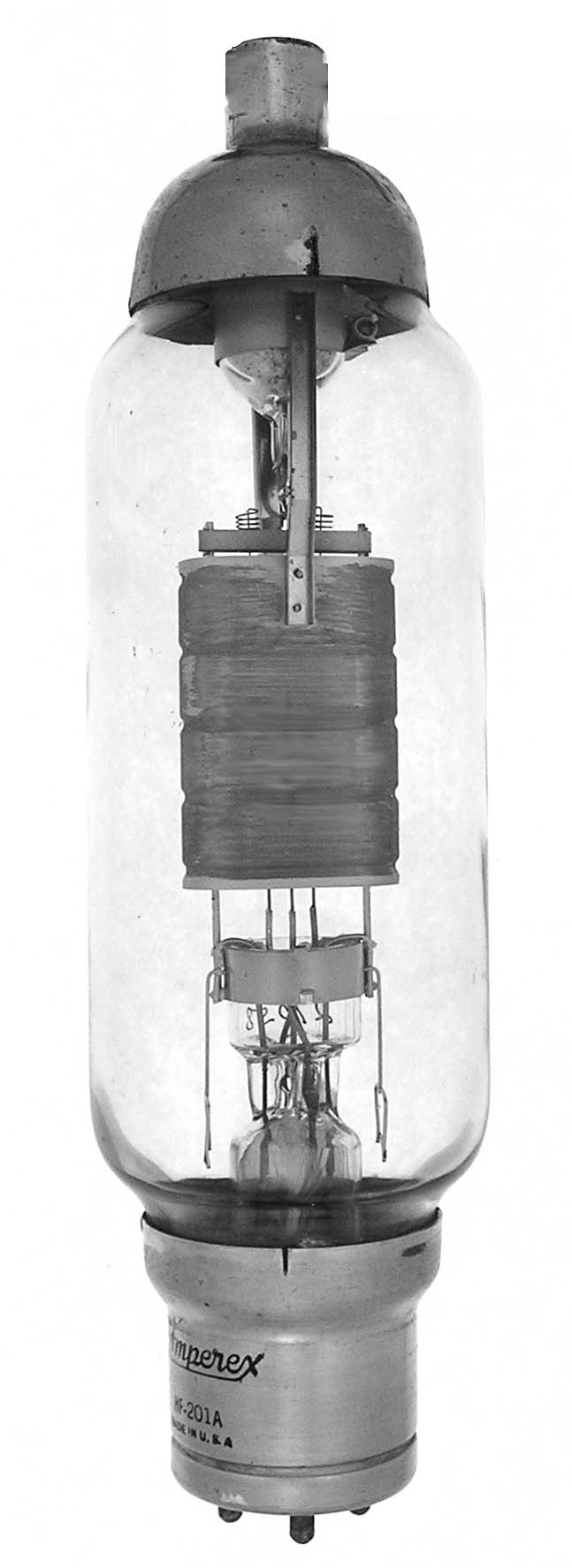

HF-201A

The HF-201A is a 150 watt triode with a mu of 18 and a maximum frequency of 30 MHz. Made by Amperex.

Length = 10.87" Diameter = 2.75"
Max voltage = 2500
Max current = 200 ma
Fil voltage = 10 - 11
Fil current = 4 amps         GOTO INDEX
