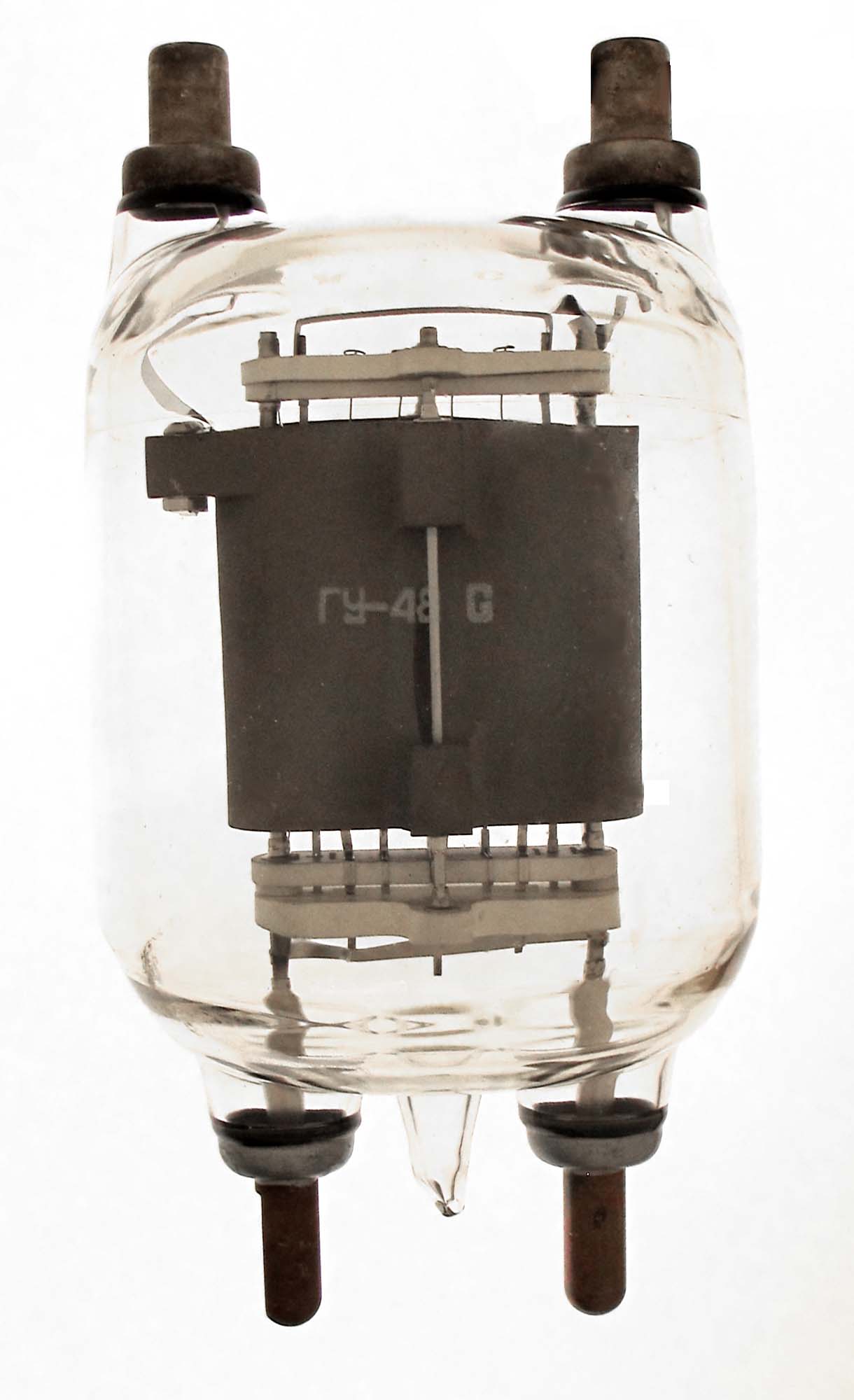

GU-48 G, ГУ-48 G

The GU-48 G or ГУ-48 G is a 300 watt dissipation triode with a mu of 29 to 41 and full ratings to 75 MHz. This tube was designed for industrial heating applications in Russia.

Length = 5.13" Diameter = 4.50"
Max voltage = 3000
Max current = 200 ma
Fil voltage = 10
Fil current = 9.2 to 10.8 amps         GOTO INDEX
