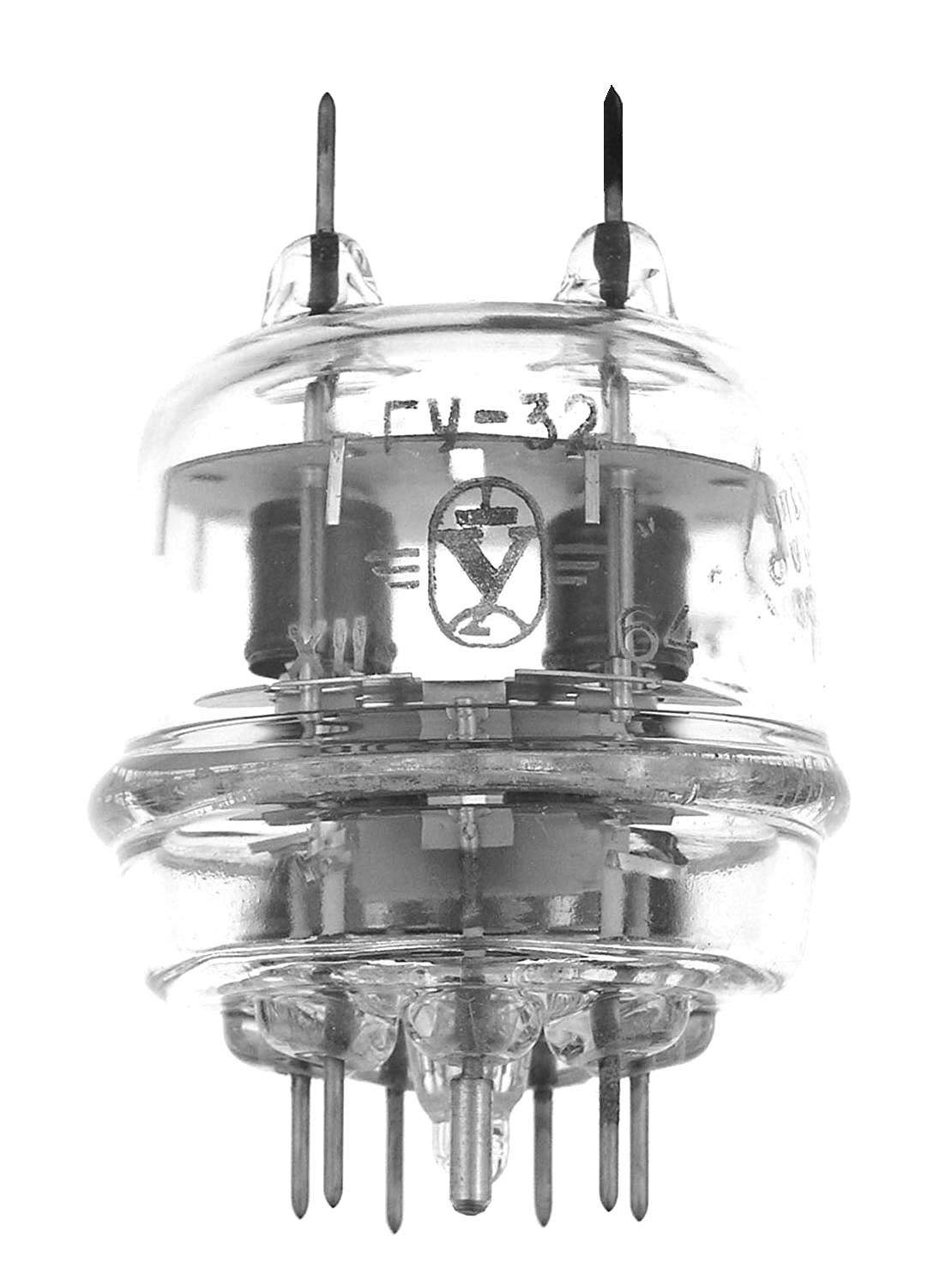

GU-32, ГУ-32

The GU-32 or ГУ-32 is dual beam pentode with a maximum frequency of 150 MHz. This is a Russian version of the 832A.

Length = 3.00" Diameter = 2.00"
Max voltage = 750
Max current = 114 ma
Fil voltage = 6.3/12.6
Fil current = 1.6/.8 amps         GOTO INDEX
