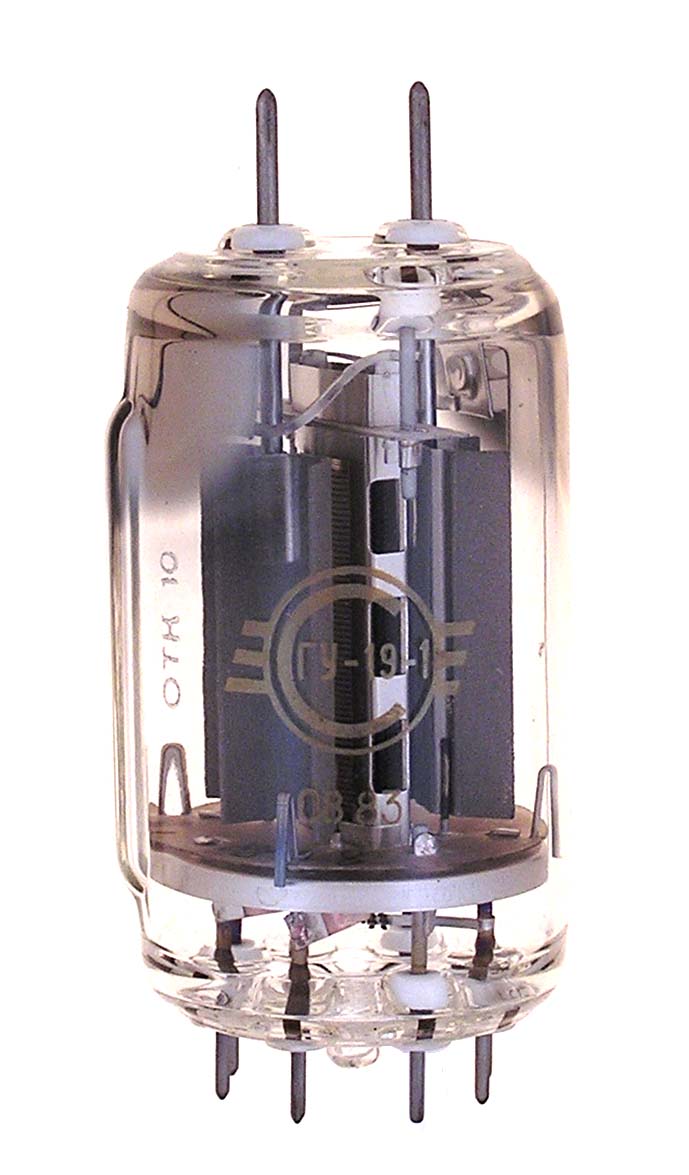

GU-19, ГУ-19

The GU19 or ГУ-19 is a 40 watt dissipation dual tetrode designed for UHF applications. Full ratings to 500 MHz.

Length = 3.50" Diameter = 1.50"
Max voltage = 750
Max current = 280 ma
Fil voltage = 6.3 or 12.6
Fil current = 1.5 or .75 amps         GOTO INDEX
