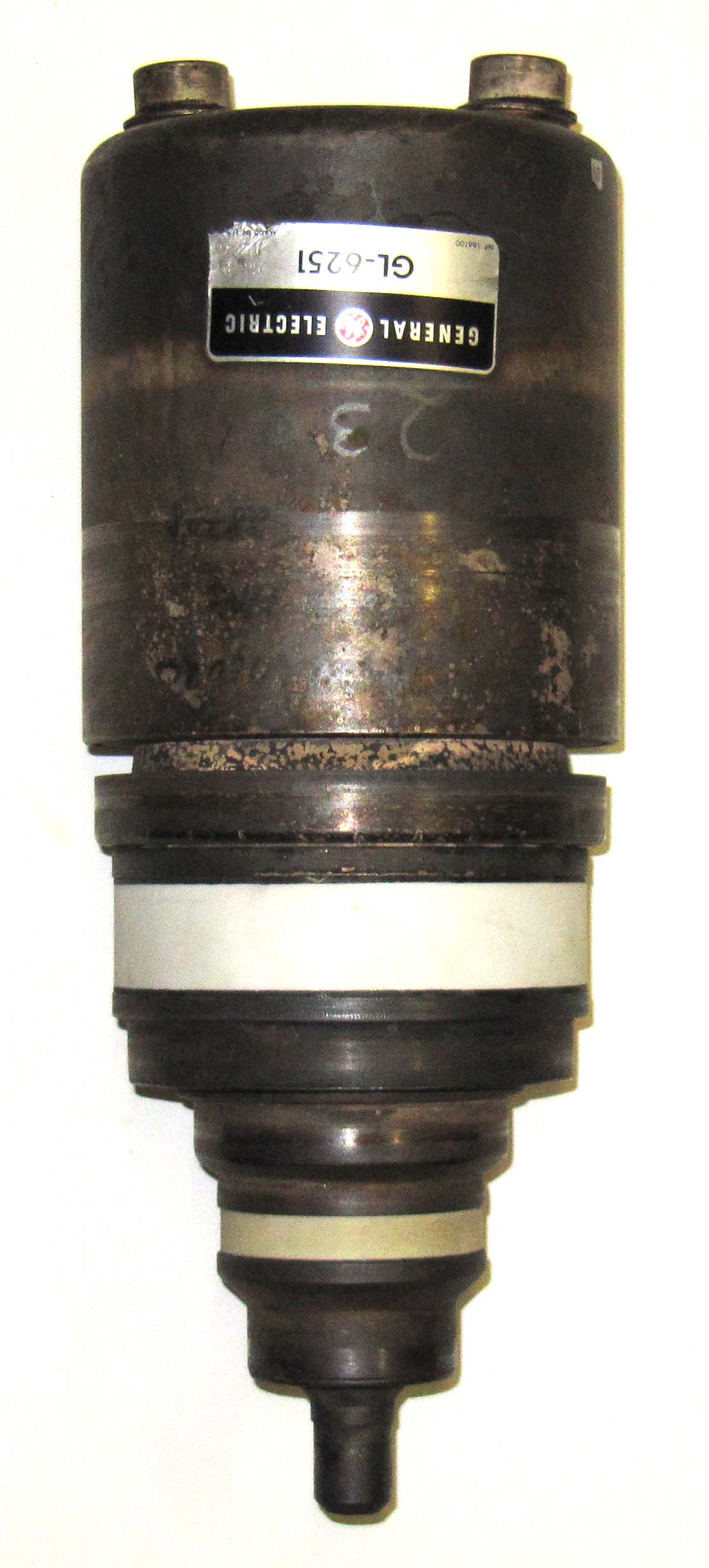

GL-6251

The GL-6251 is a 25,000 watt, water cooled, tetrode with full ratings to 220 MHz. Designed for use in G-G TV transmitters. Made by GE. This example was once used at KXTV in Sacramento.

Length = 14.00" Diameter = 5.12"
Max voltage = 7000
Max current = 8 amps
Fil voltage = 5.5
Fil current = 190 amps         GOTO INDEX
