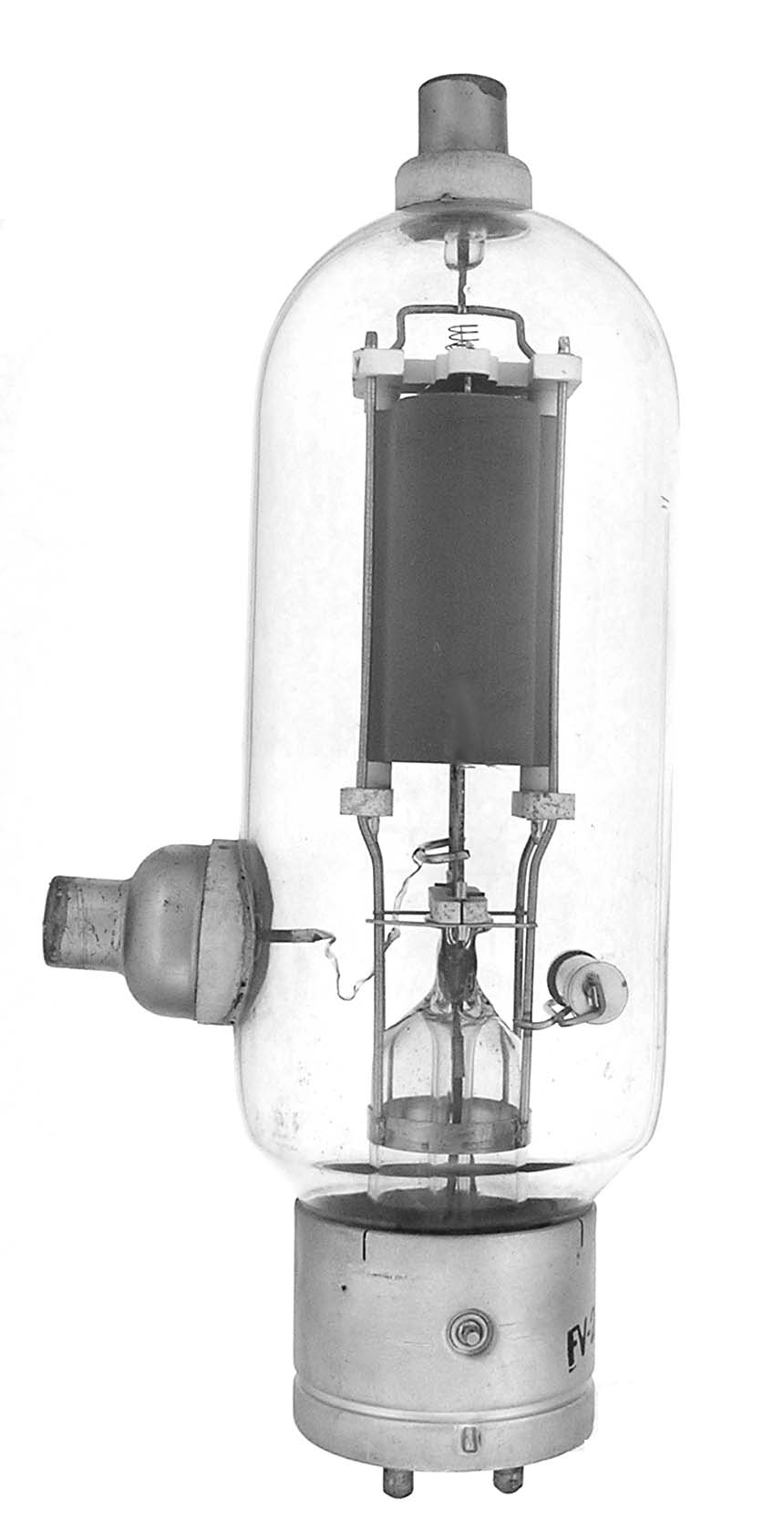

FV-20

The FV-20 is a 150 watt triode with a mu of 20 and a maximum frequency of 21 MHz for full power and useful to 50 MHz. Made by United to replace the T-125 although the mu is lower and the dissipation is higher.

Length = 8.50" Diameter = 2.50"
Max voltage = 1750
Max current = 200 ma
Fil voltage = 10
Fil current = 3.75 amps         GOTO INDEX
