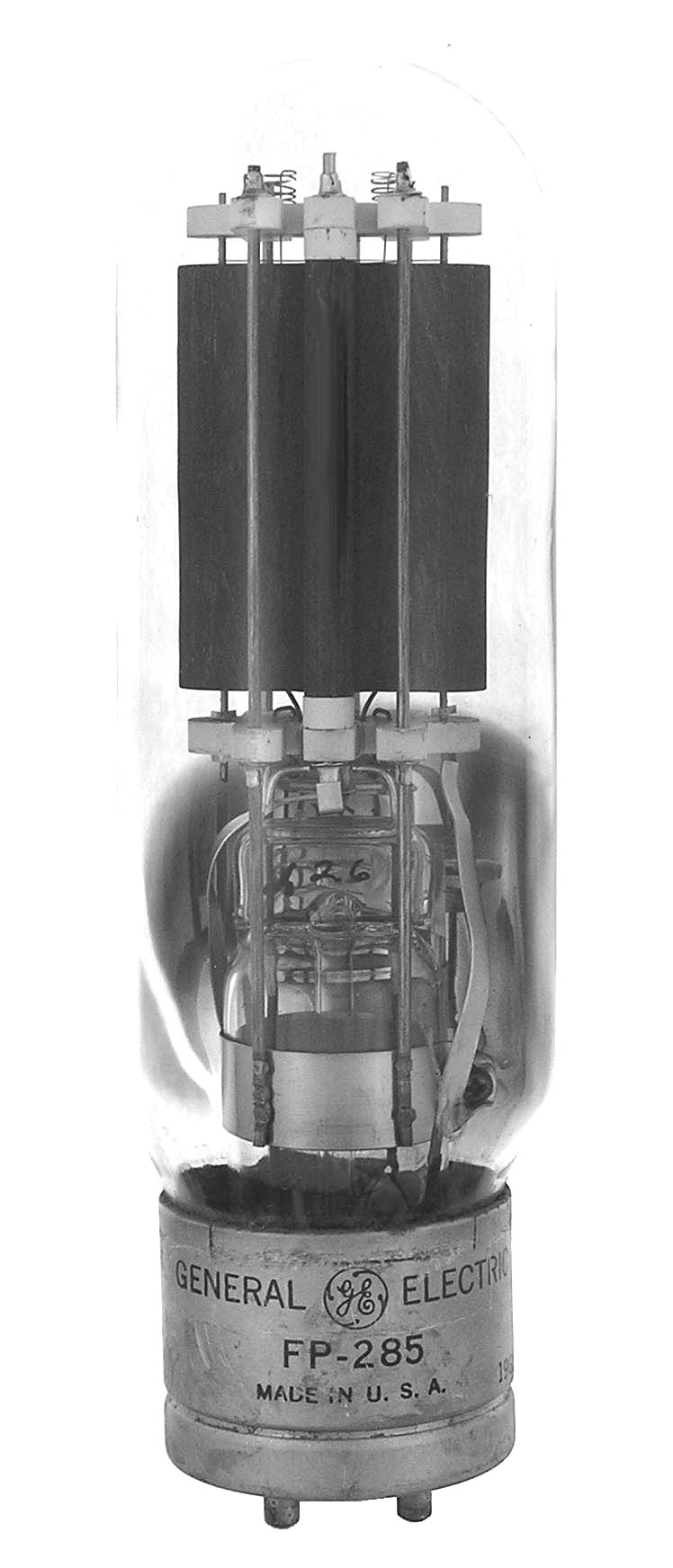

The FP-285 is a 100 watt triode with a mu of 12 and a maximum frequency of 20 MHz for full power. Length = 7.87" Diameter = 2.31" Max voltage = 1350 Max current = 200 ma Fil voltage = 10 Fil current = 3.23 amps GOTO INDEX
The FP-285 is a 100 watt triode with a mu of 12 and a maximum frequency of 20 MHz for full power.
