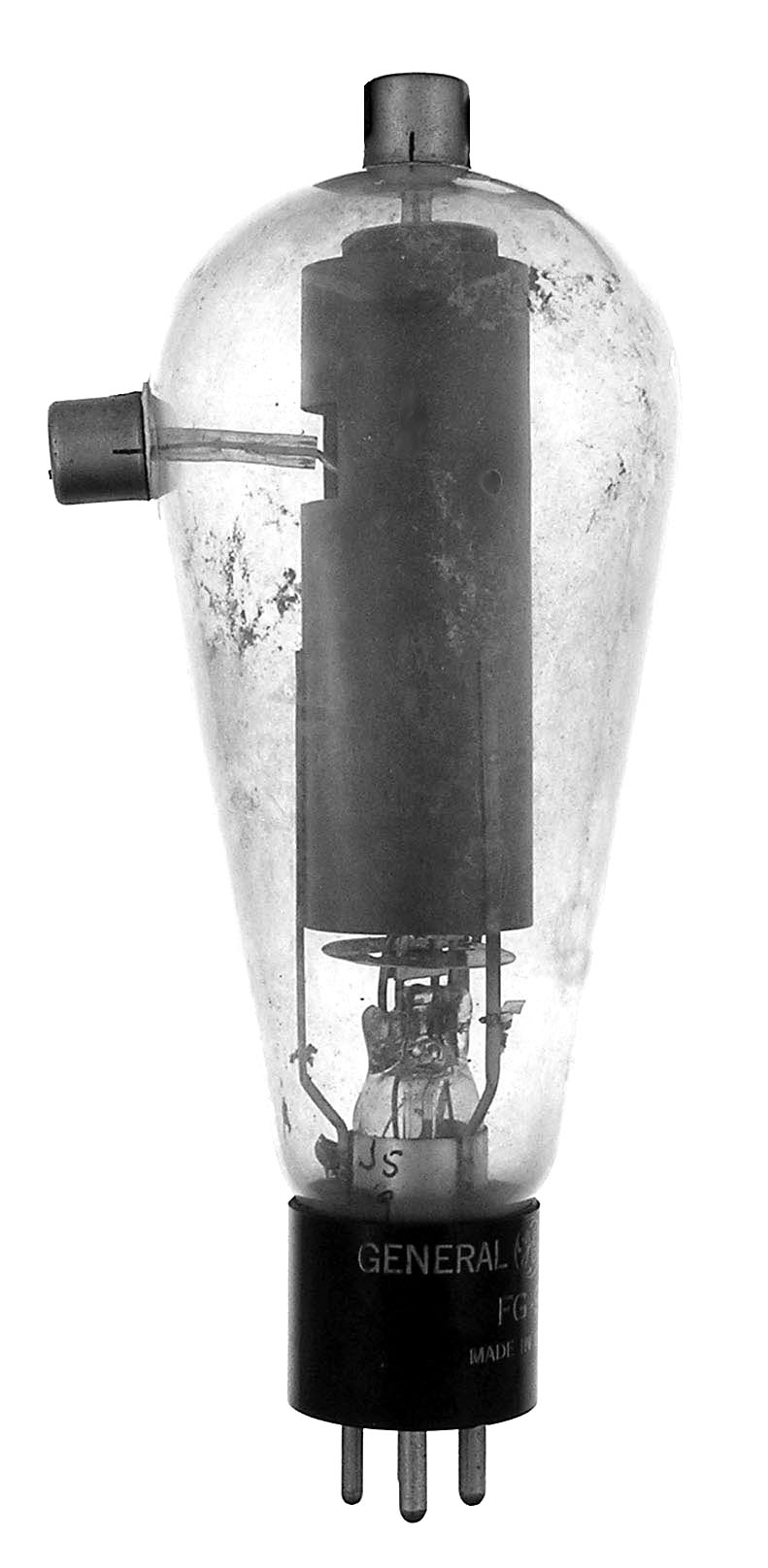

FG-95

The FG-95 is a mercury tetrode thyratron .

Length = 7.50" Diameter = 2.75" less grid connection
Max voltage = 1000 piv
Max current = 2.5 amps ave.
Fil voltage = 5
Fil current = 4.5 amps         GOTO INDEX
