F-7779

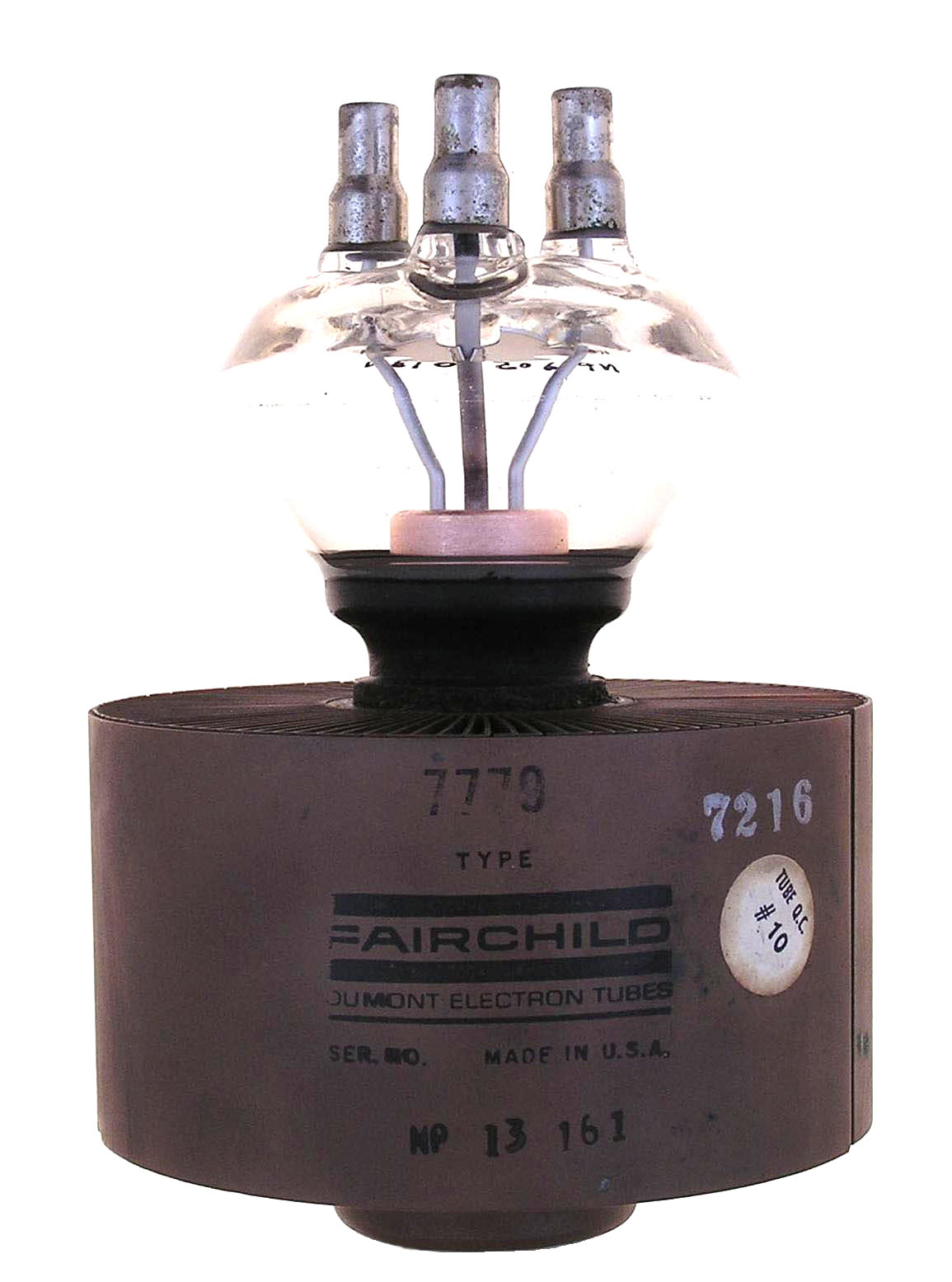

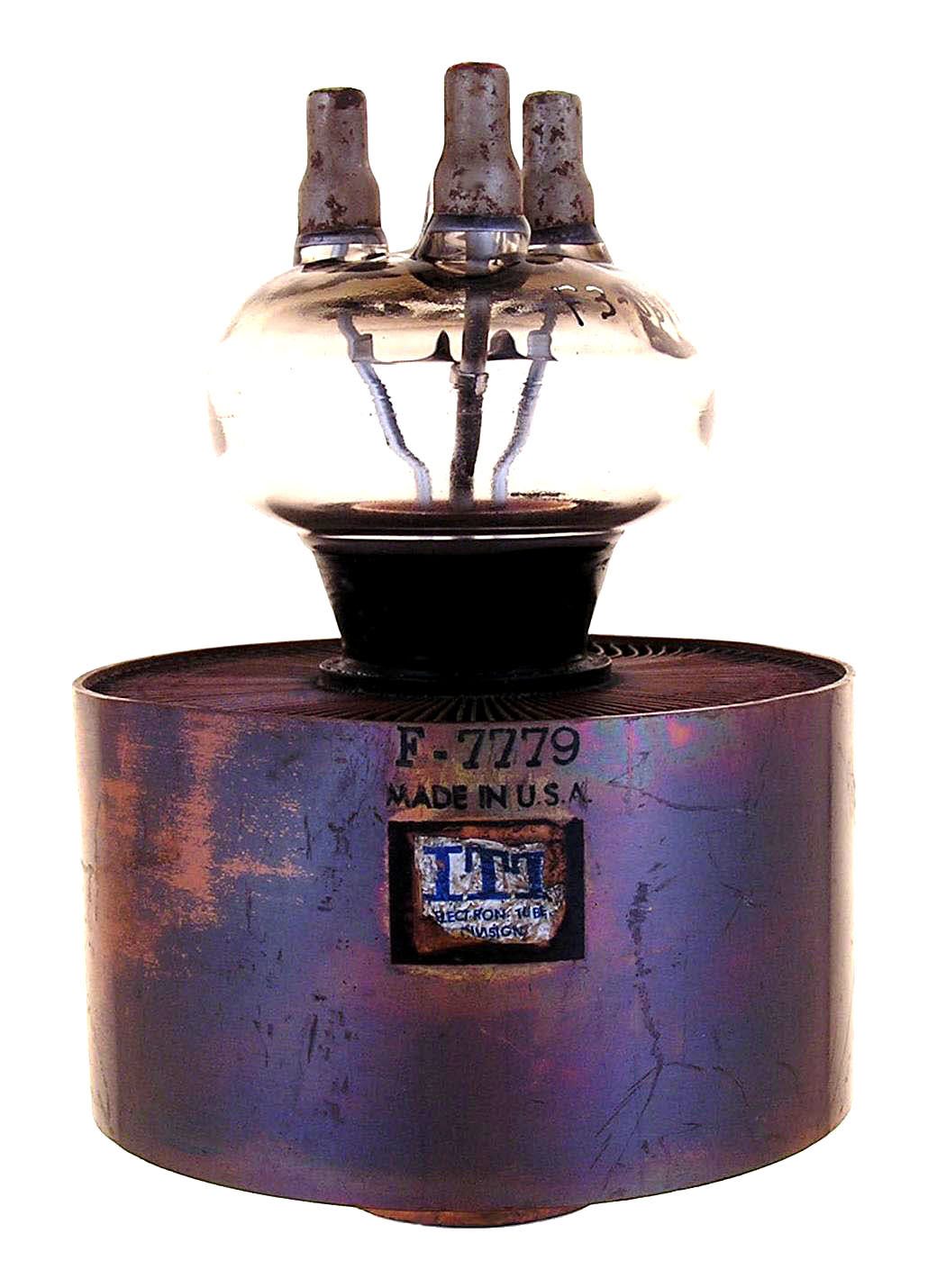

The F-7779 is a high vacuum rectifier made by Federal/ITT. The filament pins are color coded. This tube designated just 7779 was also made by Fairchild. No additional data is available.

Length = 6.50" Diameter = 4.50"
Max voltage = 25,000 piv
Max current = 30 amps peak, 6 amps average
Fil voltage = 13
Fil current = 36 amps
Data sheet:
