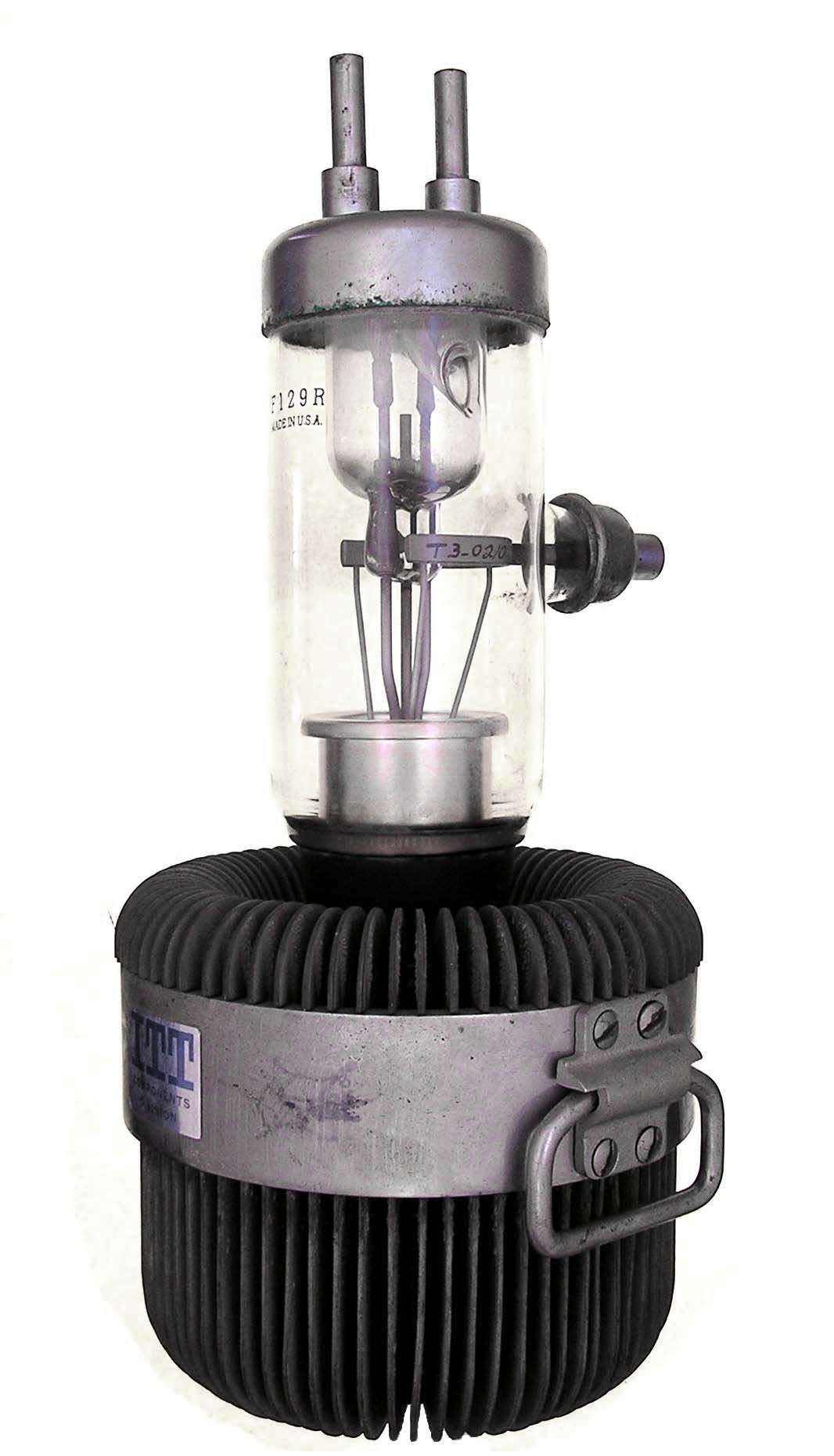

F-129R

The F-129R is an air cooled power triode with a mu of 26 made by Federal Telephone & Radio and is rated at 5 KW. It operates at full ratings to 30 MHz.


Length = 13.00" Diameter = 5.75"
Max voltage = 12000
Max current = 2 amps
Fil voltage = 18
Fil current = 58 amp         GOTO INDEX
