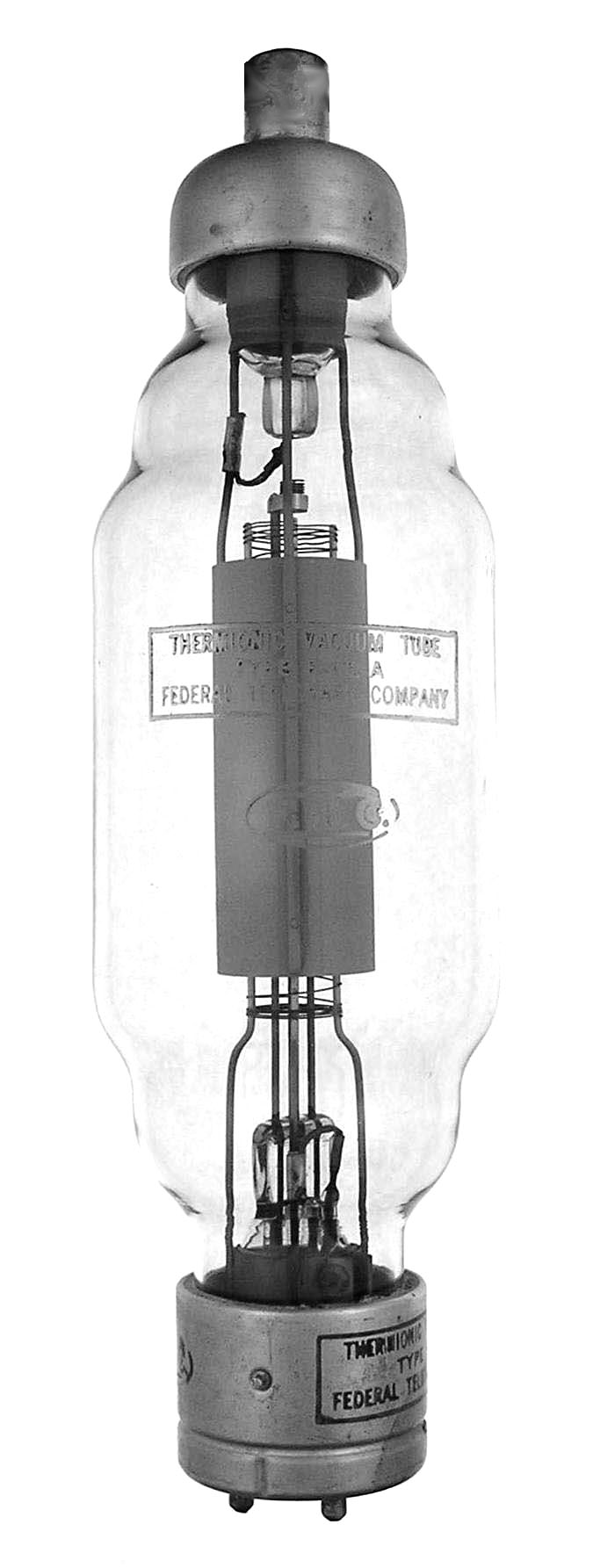

F-102-A

The F-102-A is a 175 watt triode with a mu of 8 made by the Federal Telegraph Company.


Length = 11.00" Diameter = 2.75"
Max voltage = 3000
Max current = 225 ma
Fil voltage = 10
Fil current = 11 amps         GOTO INDEX
