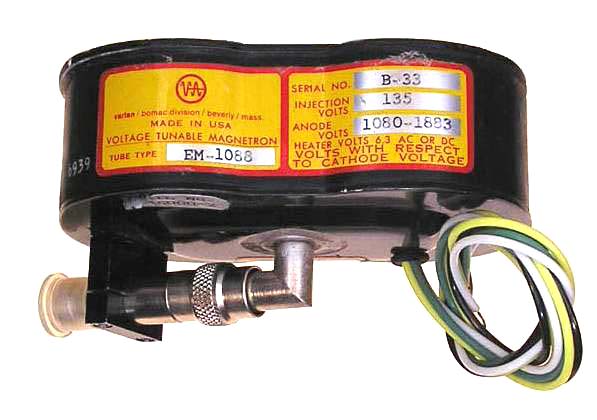

The EM-1088 is a voltage tunable magnetron that operates from 520 to 925 MHz. Minimum power output is 30 mW.
Length = 3.50" Diameter = 3.00" (FLANGE)
Anode voltage = 970 to 2000
Cathode current = 2 to 4 ma
Max injection anode voltage = 200
Max injection anode current = .02 ma
