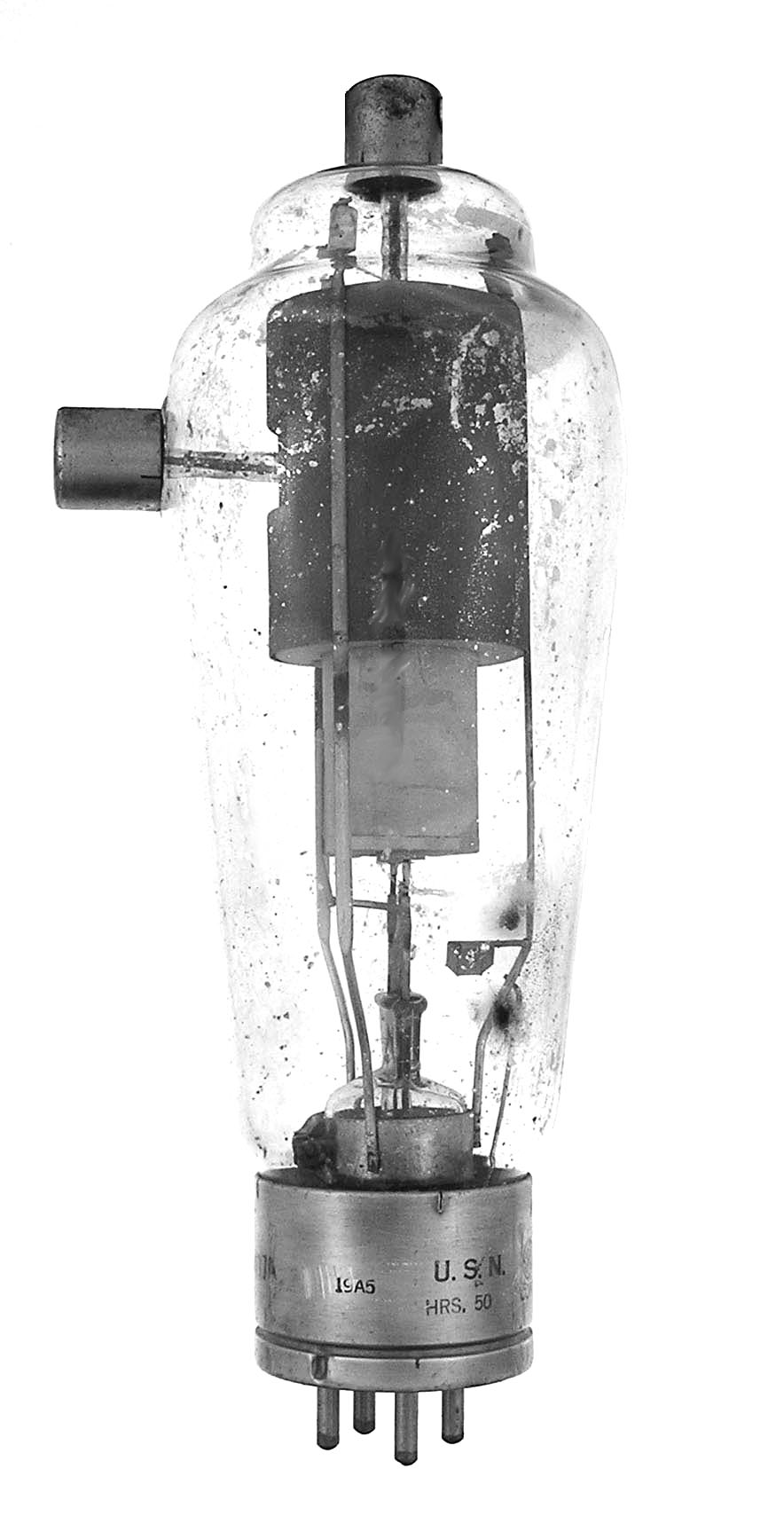

DG-1605

The DG-1605 is a mercury tetrode thyratron. The U.S. Navy (ca. 1946) crosses it to the FG-105 for which this data was taken.

Length = 15.00" Diameter = 4.75"
Max voltage = 2500 PIV
Max current = 6.4 amps
Fil voltage = 5
Fil current = 10 amps         GOTO INDEX
