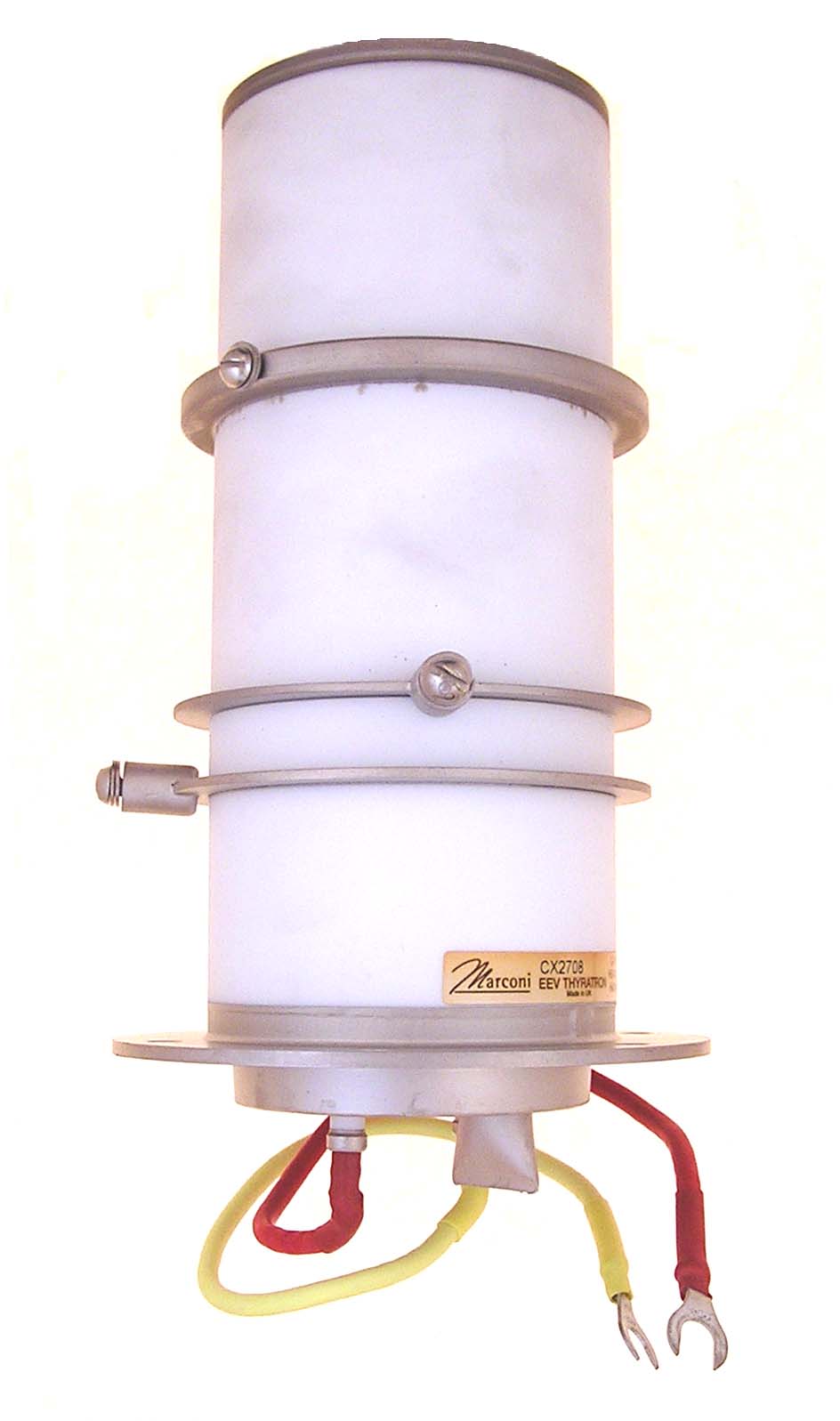

CX2708

The CX2708 is a deuterium filled, double-gap, hollow anode, ceramic-metal thyratron. This tube was made by EEV (E2V) fou use as a crossbar protector in high voltage power supplies. This tube was used at KOVR TV in Sacramento.

Length = 8.50" Diameter = 4.38"
Max voltage = 40000
Max current = 1500 amp peak
Fil voltage = 6.3
Fil current = 20 amps         GOTO INDEX
