C-1149

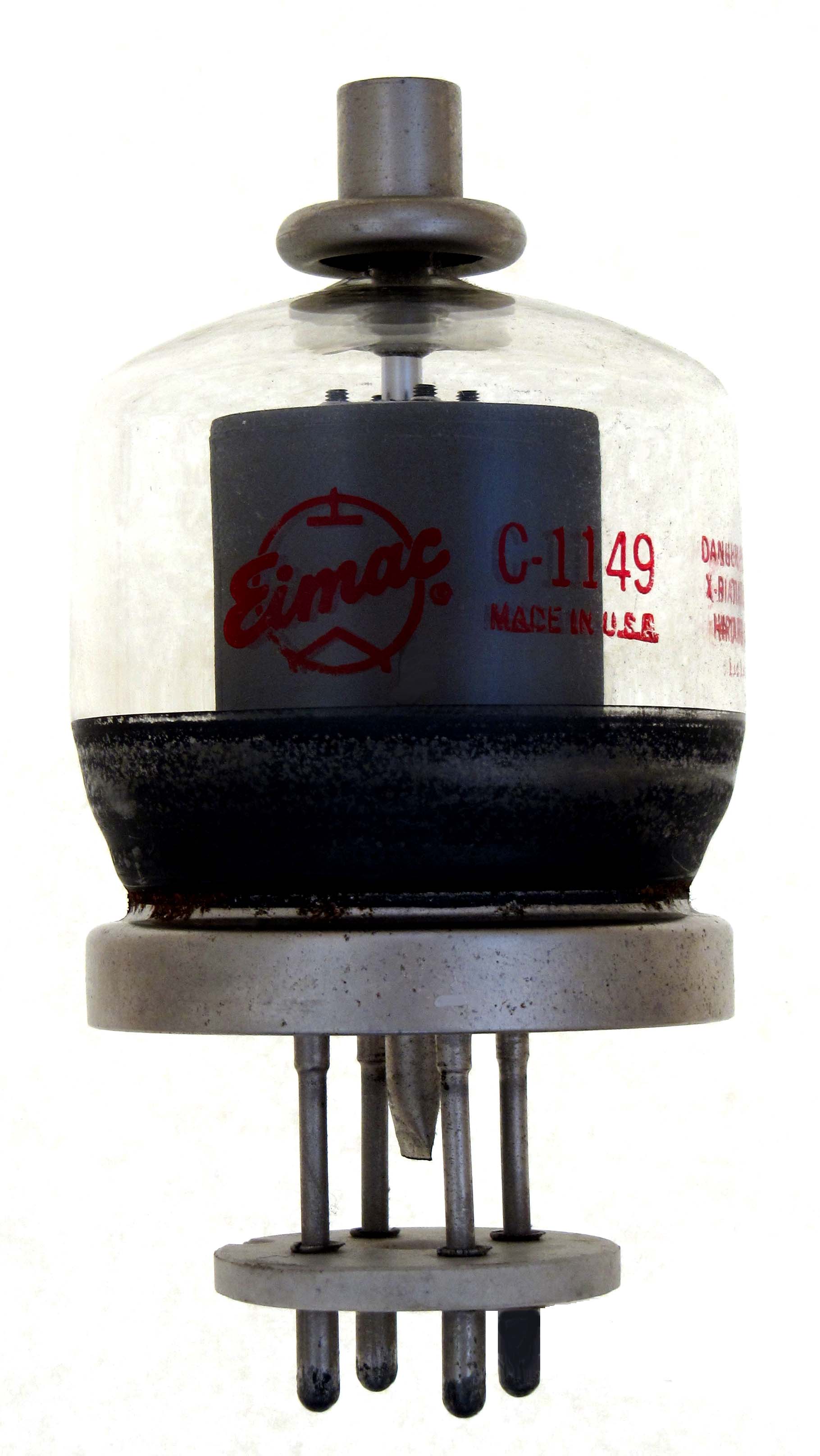

The C-1149 is a tetrode designed for pulse modulation service. It is interchangable with the 4PR60B. This example was made by EIMAC.


Length = 5.87" Diameter = 3.00"
Max voltage = 20 kv pulse
Max current = 18 amp pulse
Fil voltage = 26
Fil current = 2.15 amps         GOTO INDEX
