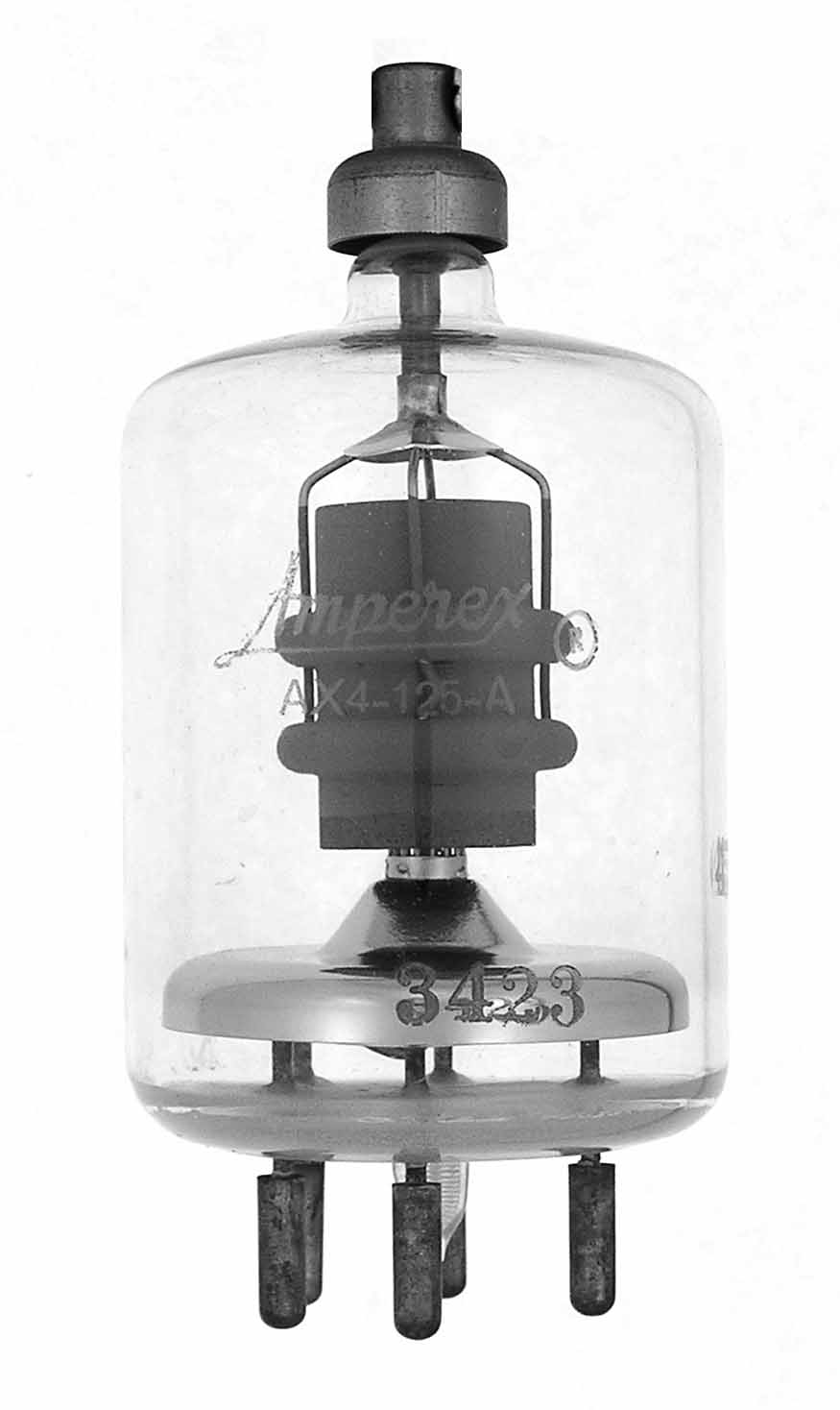

AX4-125A

The AX4-125A is a 125 watt dissipation tetrode. The usable frequency for maximum ratings is 120 MHz. Electrically the same as the EIMAC 4-125A but a different envelope.

Length = 4.75" Diameter = 2.75"
Max voltage = 3000
Max current = 225 ma
Fil voltage = 5
Fil current = 6.5 amps         GOTO INDEX
