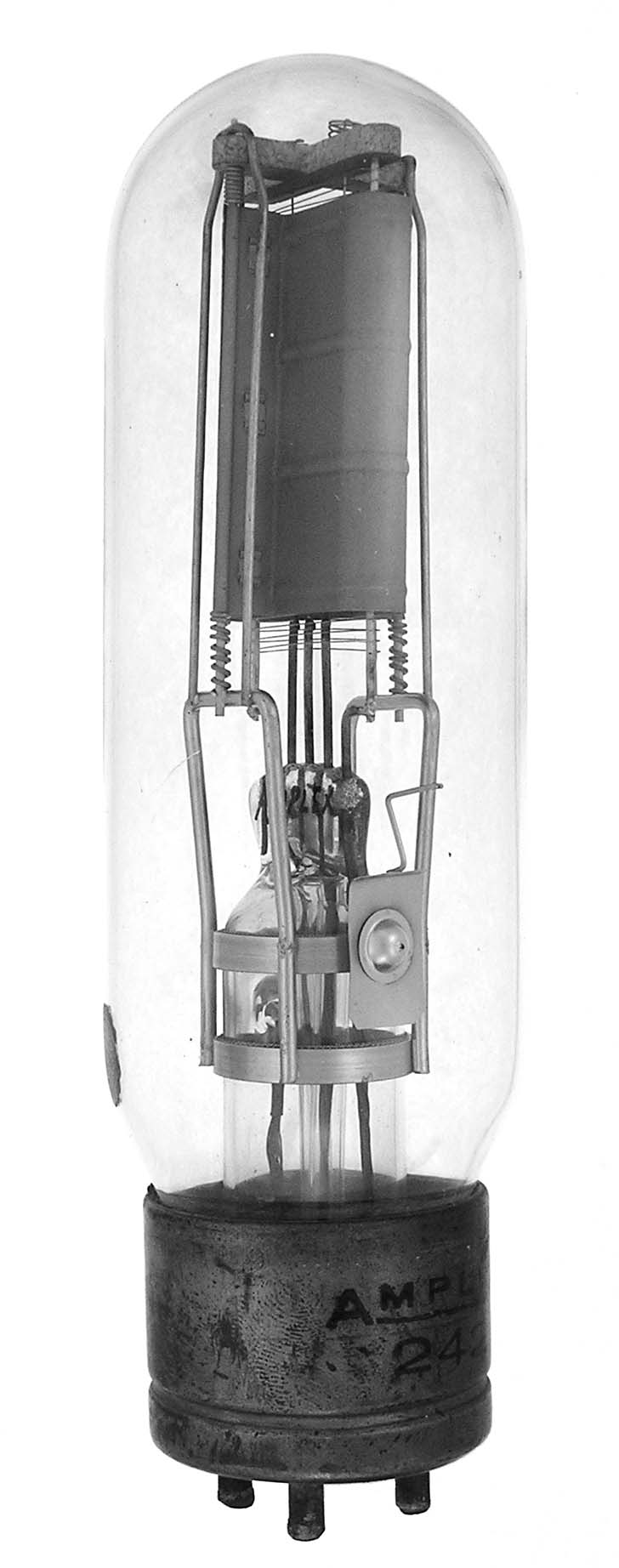

AMPLEX 242

This 242 is a 100 watt general purpose triode similar to the WE242A and 211D made by the Amplex company. I assume the characteristics are the same as the WE original.

Length = 7.83" Diameter = 2.3.0"
Max voltage = 1000
Max current = 94 ma
Fil voltage = 10
Fil current = 3.2 amps         GOTO INDEX
