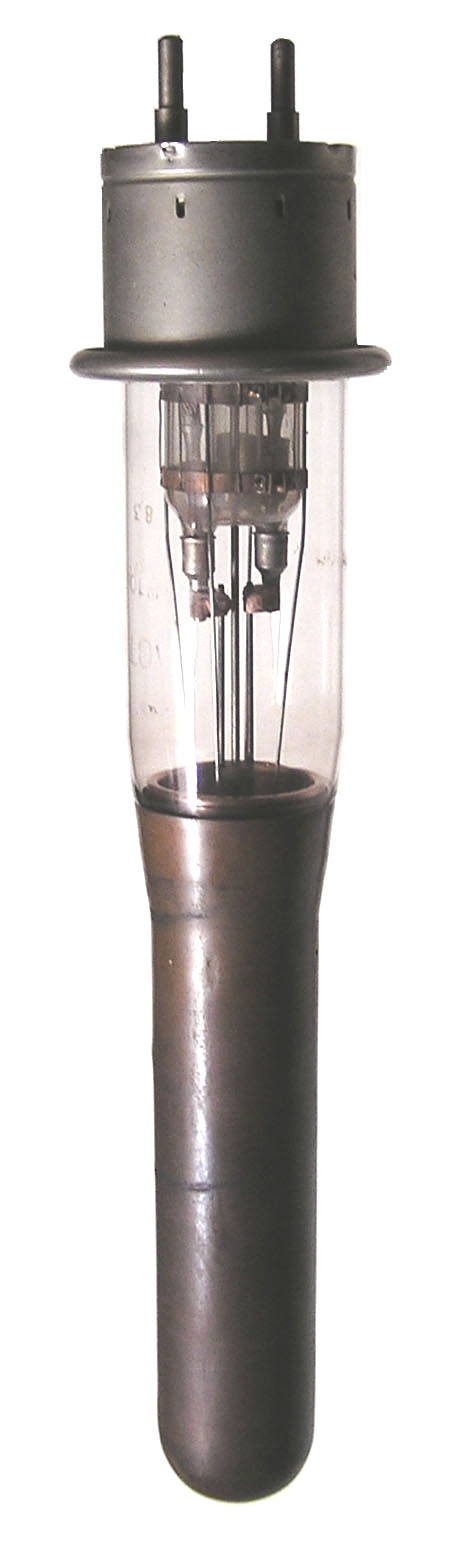

ACT 9

The ACT 9 is an 1100 watt triode with a mu of 40 and a maximum frequency for full output of 15 MHz. It is forced air cooled with a detachable radiator. It is made in England.

Length = 17.50" Diameter = 3.50"
Max voltage = 10000
Max current = 400 ma
Fil voltage = 16.3
Fil current = 22 amps         GOTO INDEX
