A-660

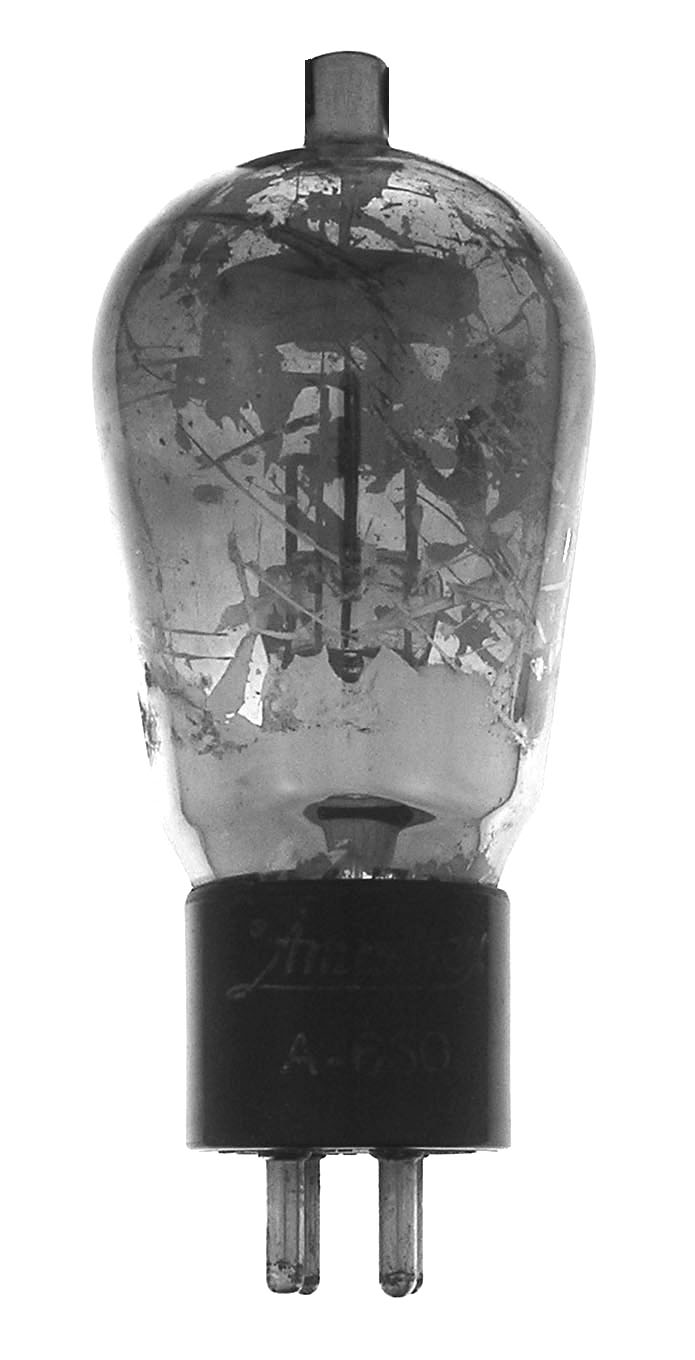

The A-660 is a high voltage mercury vapor rectifier made by Amperex. The filament current was found by experiment as it didn't match published data.

Length = 5.12" Diameter = 2.00"
Max voltage = 5000 piv
Max current = 125 ma
Fil voltage = 2.5
Fil current = 5 amps         GOTO INDEX
