A-331

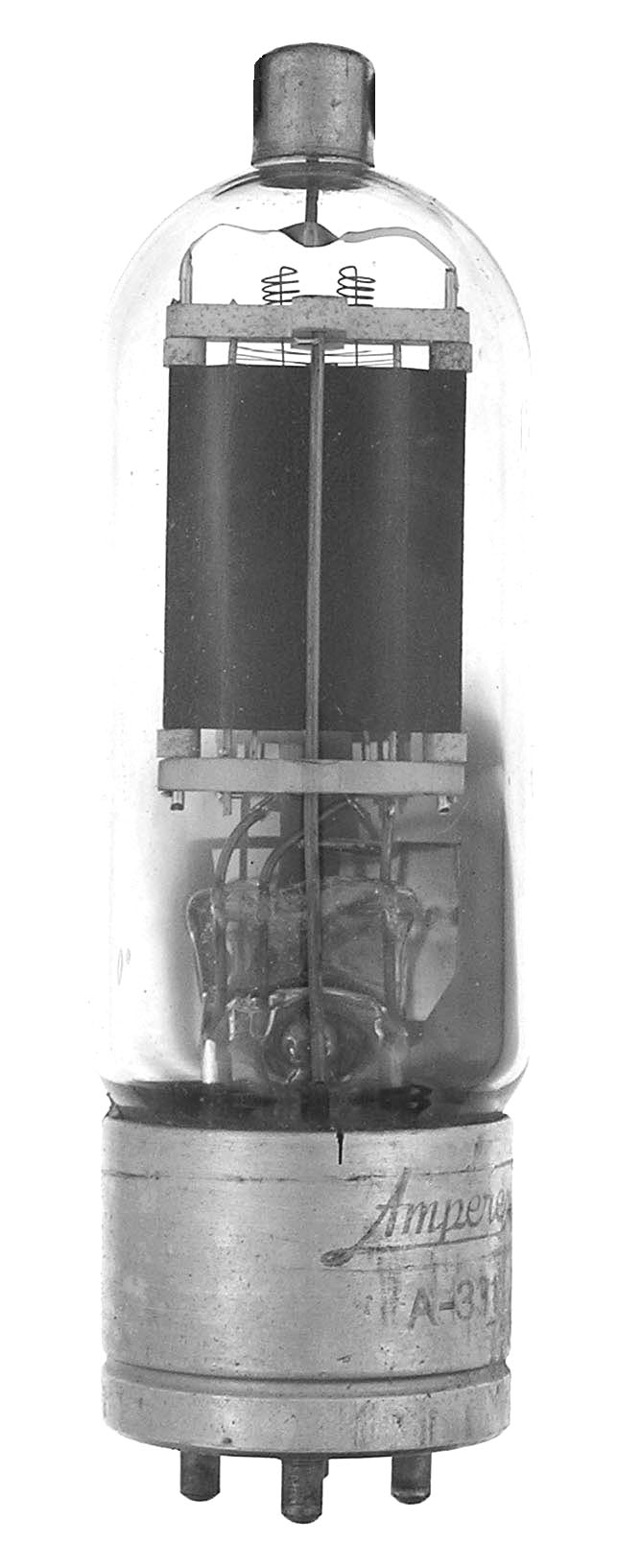

The A-331 is a 75 watt triode with a mu of 14 used for RF heating applications up to 20 MHz . Made by Amperex.

Length = 6.37" Diameter = 1.87"
Max voltage = 1500
Max current = 165 ma
Fil voltage = 10
Fil current = 2.5 amps         GOTO INDEX
