A207

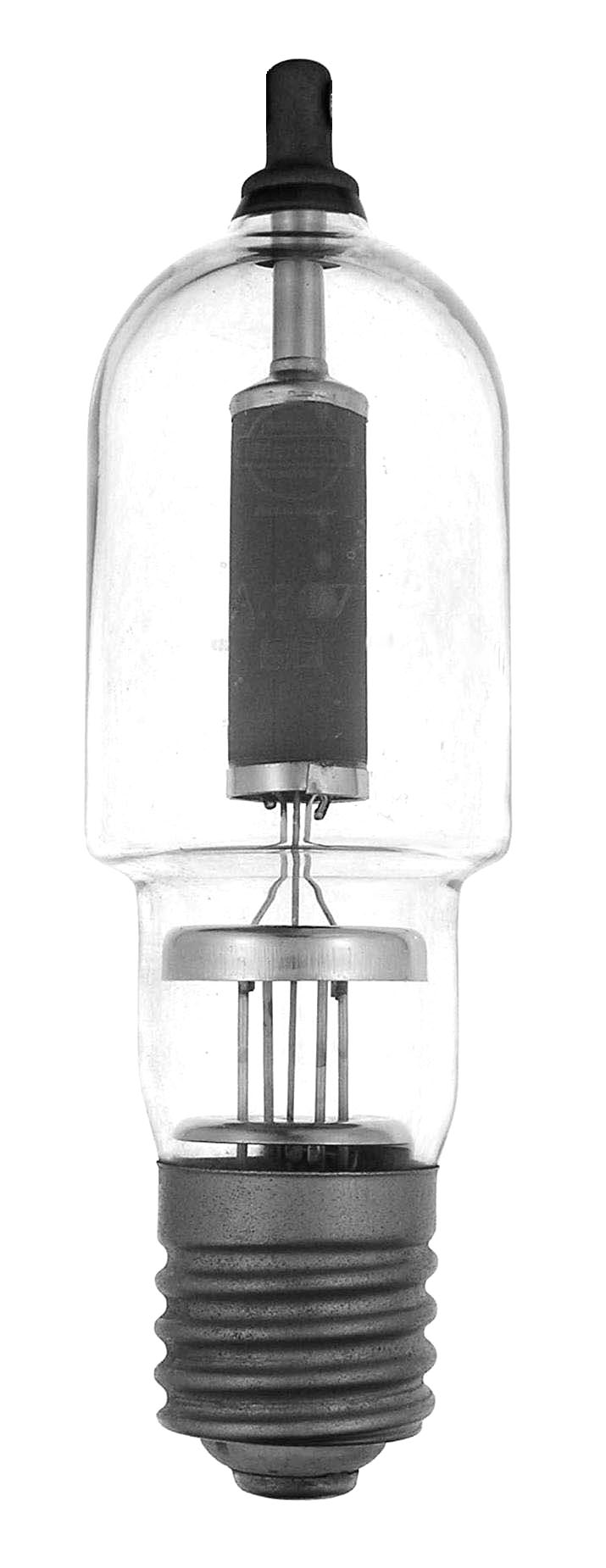

The A207 or A.20-7 is a 130 watt half wave rectifier with screw in base. This example was made by Marconi.

Length = 7.87" Diameter = 2.25"
Max voltage = 40000
Max current = 1.1 amps
Fil voltage = 4
Fil current = 12 amps         GOTO INDEX
