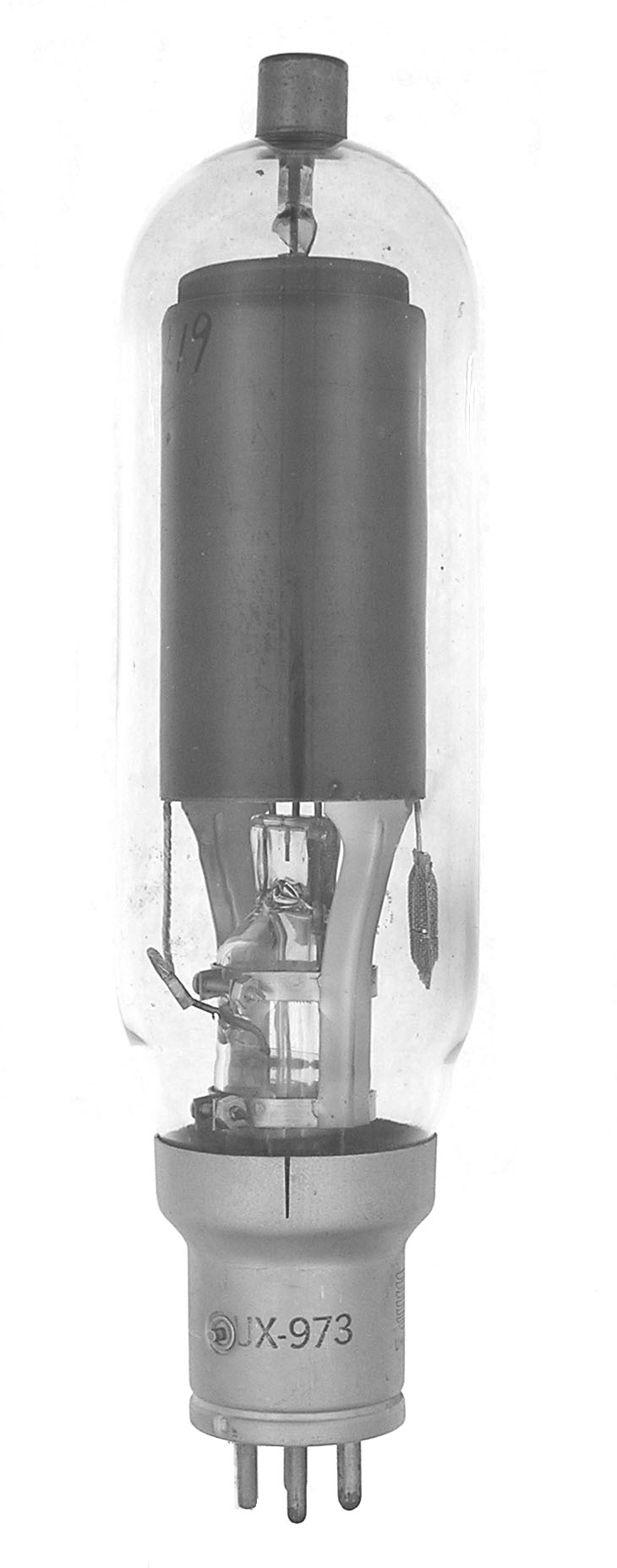

UX-973

The UX-973 is a mercury vapor triode thyratron. The 973 is the same tube with a 50 watt base. Some examples are marked: Part Number WT-230.

Length = 9.12" Diameter = 2.31"
Max voltage = 1000 piv
Max current = 1.25 average
Fil voltage = 5
Fil current = 6.75 amps         GOTO INDEX
