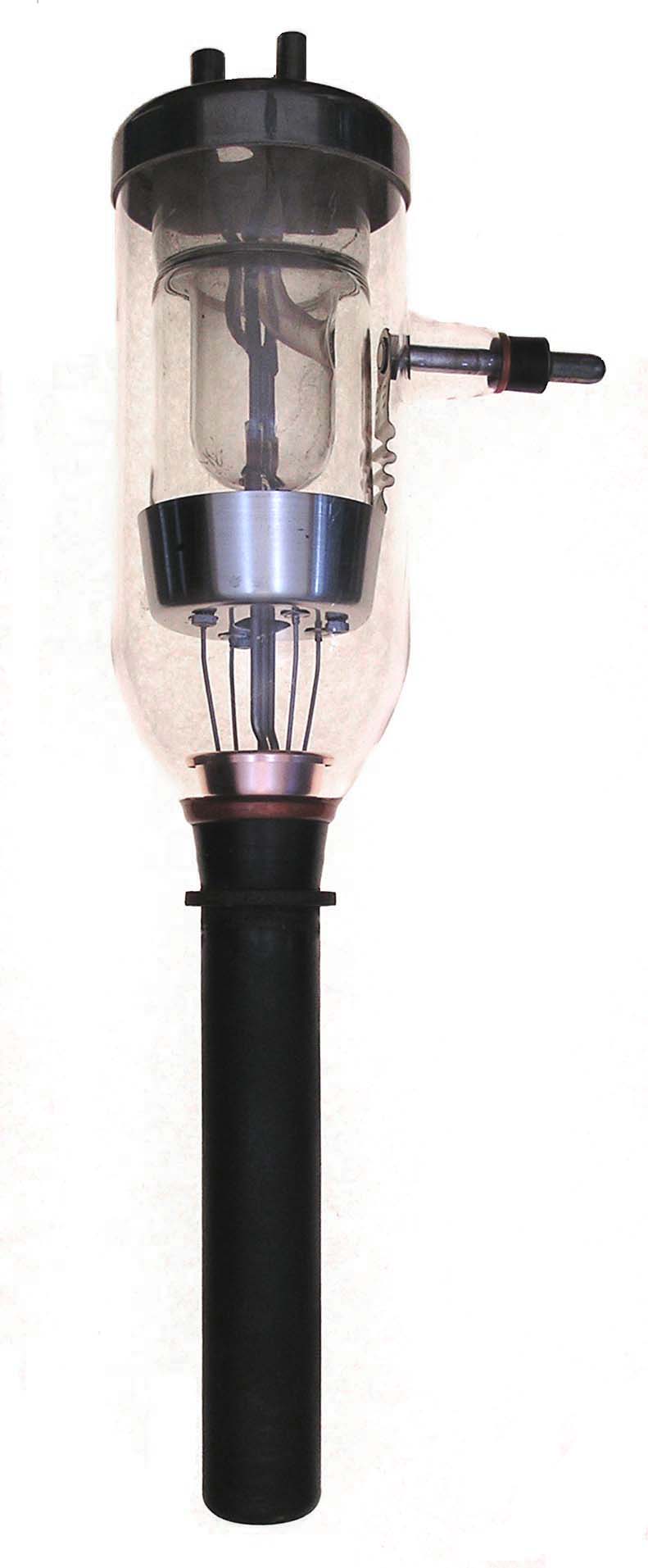

892

The 892 is a 5000 watt, water cooled, triode with a mu of 50 and a maximum frequency of 1.6 MHz for full ratings and usable to 20 MHz.

Length = 20.87" Diameter = 6.37"
Max voltage = 15000
Max current = 1 amp
Fil voltage = 11
Fil current = 60 amps         GOTO INDEX
