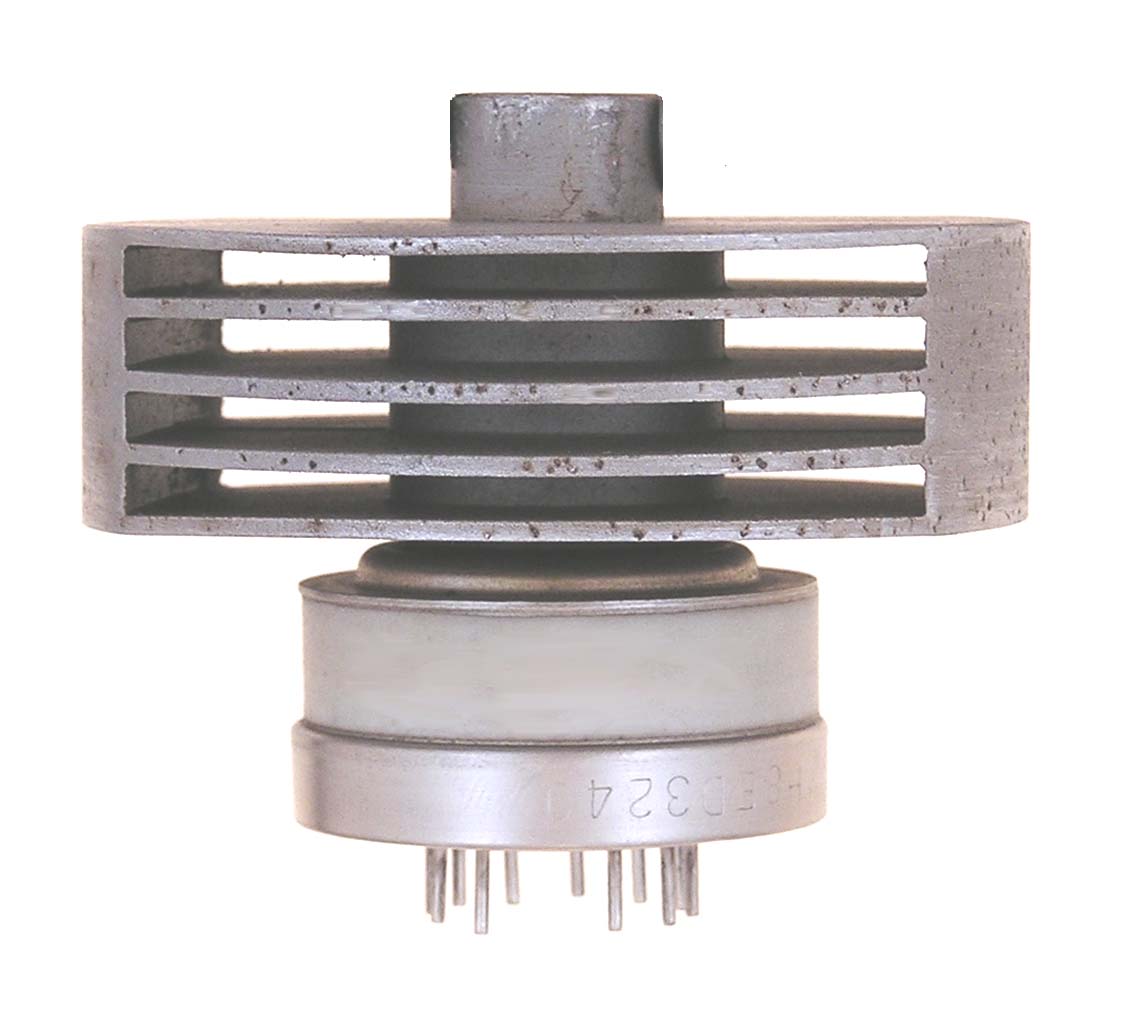

8875

The 8875 is a 300 watt, transverse air cooled, triode with a mu of 240 and a maximum frequency for full ratings of 500 MHz. Designed for zero bias operation.

Length = 2.18" Diameter = 2.52"
Max voltage = 2200
Max current = .35 amp
Fil voltage = 6.3
Fil current = 3 amps         GOTO INDEX
