8807

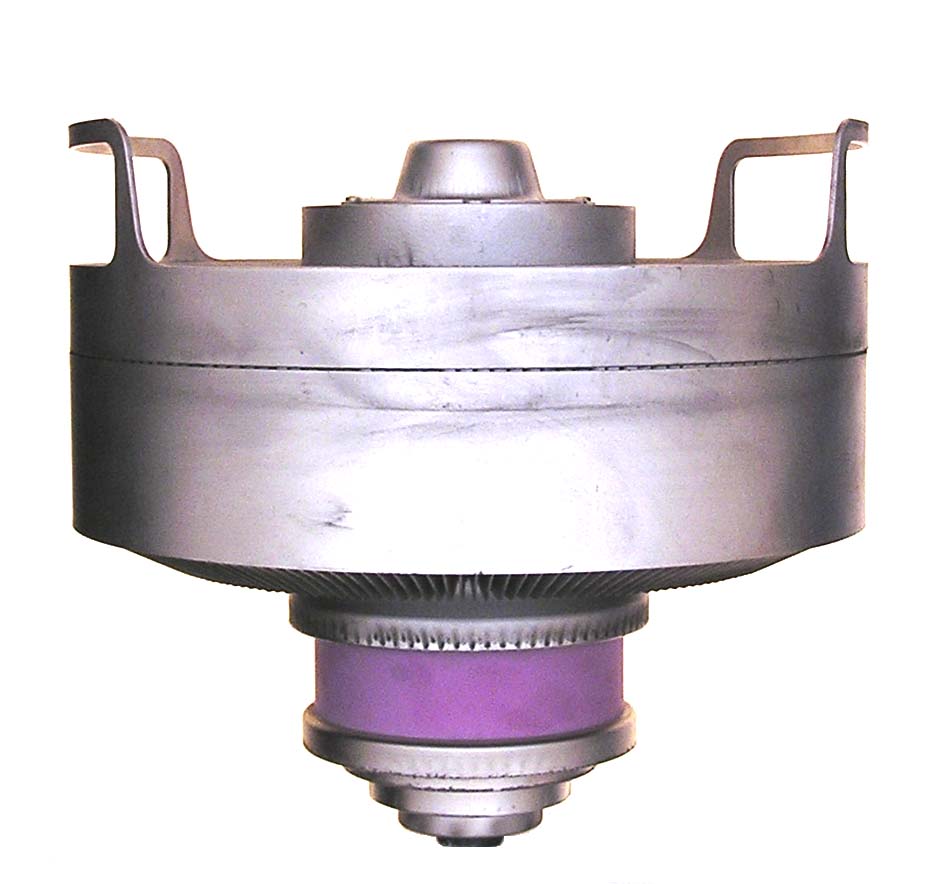

The 8807 or 4CX16,000A is a 15000 watt tetrode designed by Burle for use in UHF-TV applications up to 400 MHz. This tube was used as an aural power amplifier in a Harris TV50H transmitter at KOVR channel 13 in Sacramento.

Length = 6.70" Diameter = 7.11"
Max voltage = 10000
Max current = 6 amps
Fil voltage = 9.5
Fil current = 140 amps         GOTO INDEX
