8792

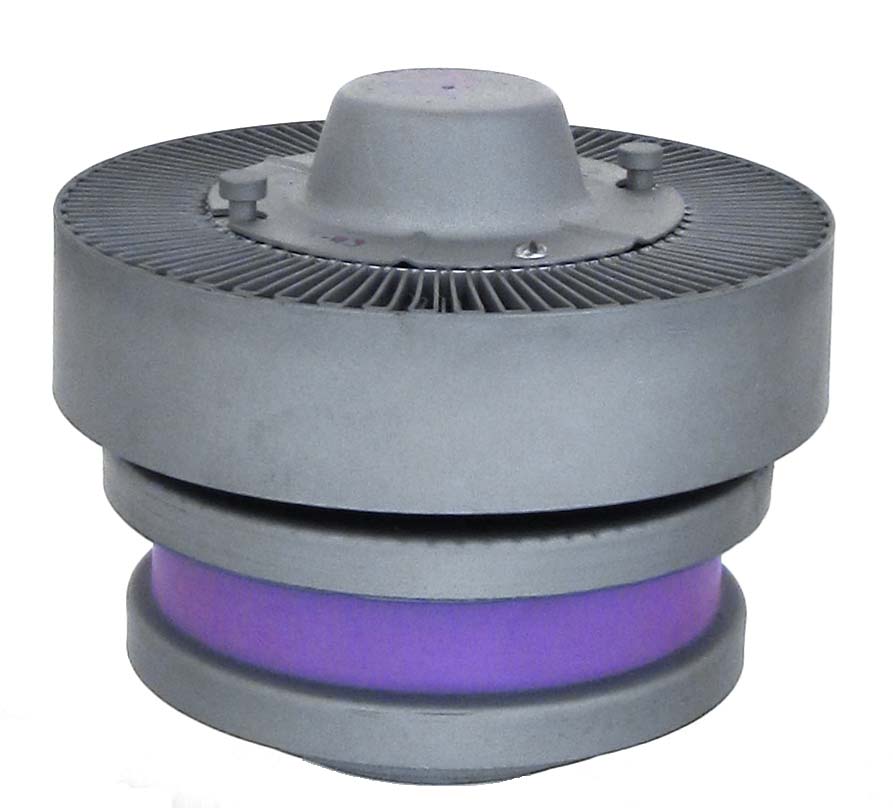

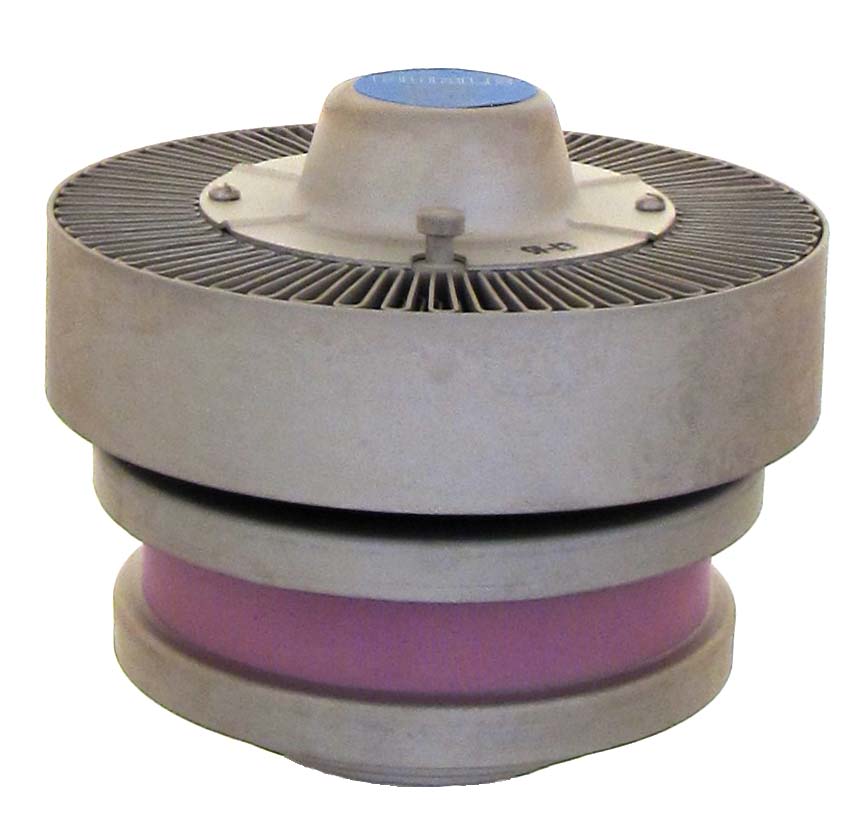

The 8792 is a 1500 watt, forced air cooled ceramic/metal tetrode designed for SSB and FM amplifier service. The first example was made by Brule and the second by RCA. These tubes came from Channel 7 in San Francisco.

Length = 3.25" Diameter = 3.72"
Max voltage = 2500
Max current = .6 amp
Fil voltage = 5.3
Fil current = 17.3 amps         GOTO INDEX
