8791/V1

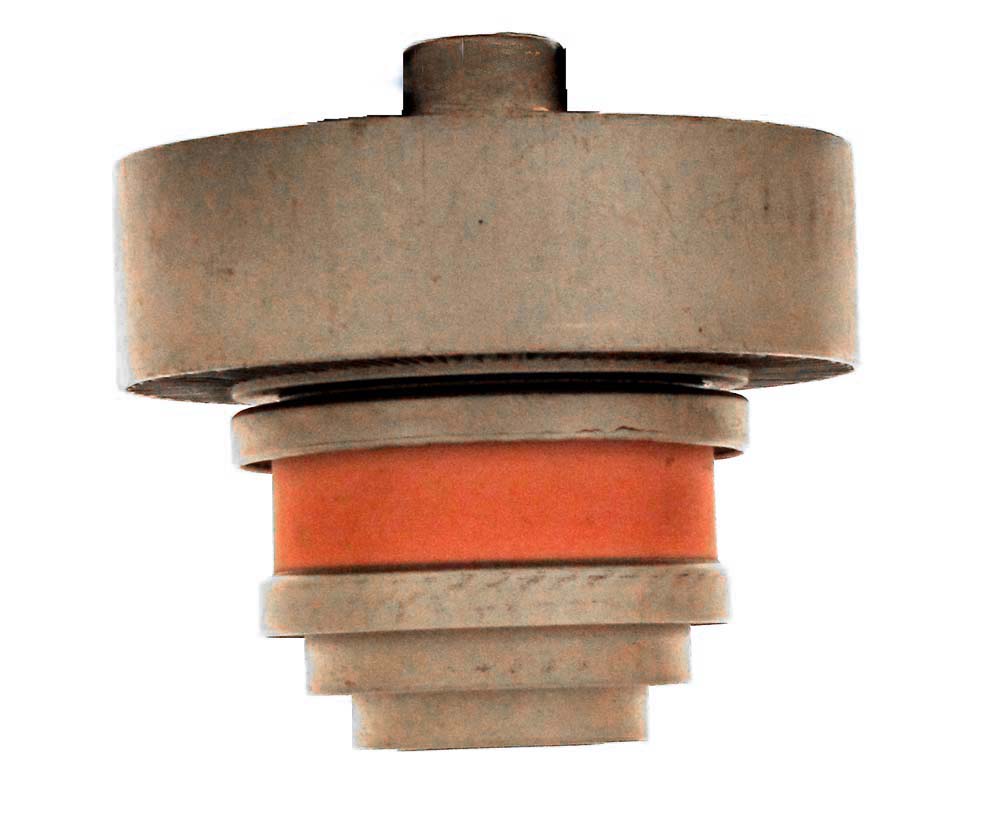

The 8791/V1 is a 500 watt, forced air cooled ceramic/metal tetrode designed for TV amplifier service. Maximum frequency is 400 MHz for 1 KW power. The V1 indicated TV use in translators at the 300 watt level.

Length = 2.40" Diameter = 2.08"
Max voltage = 3000
Max current = .75 amp
Fil voltage = 6.3
Fil current = 7.2 amps         GOTO INDEX
