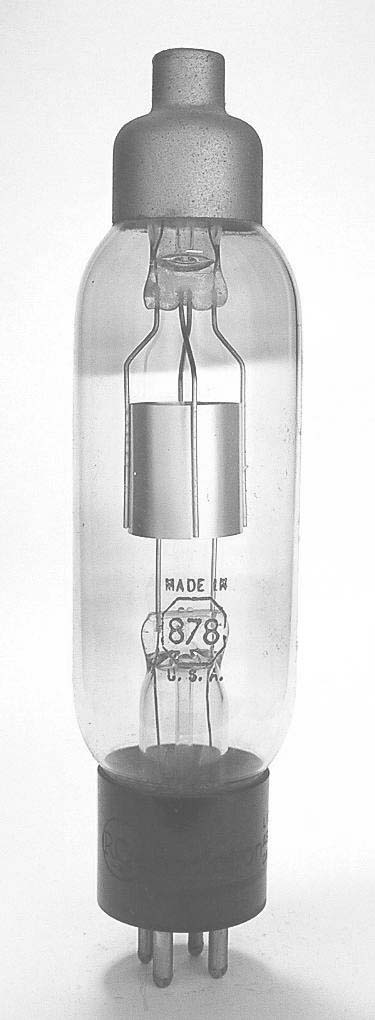

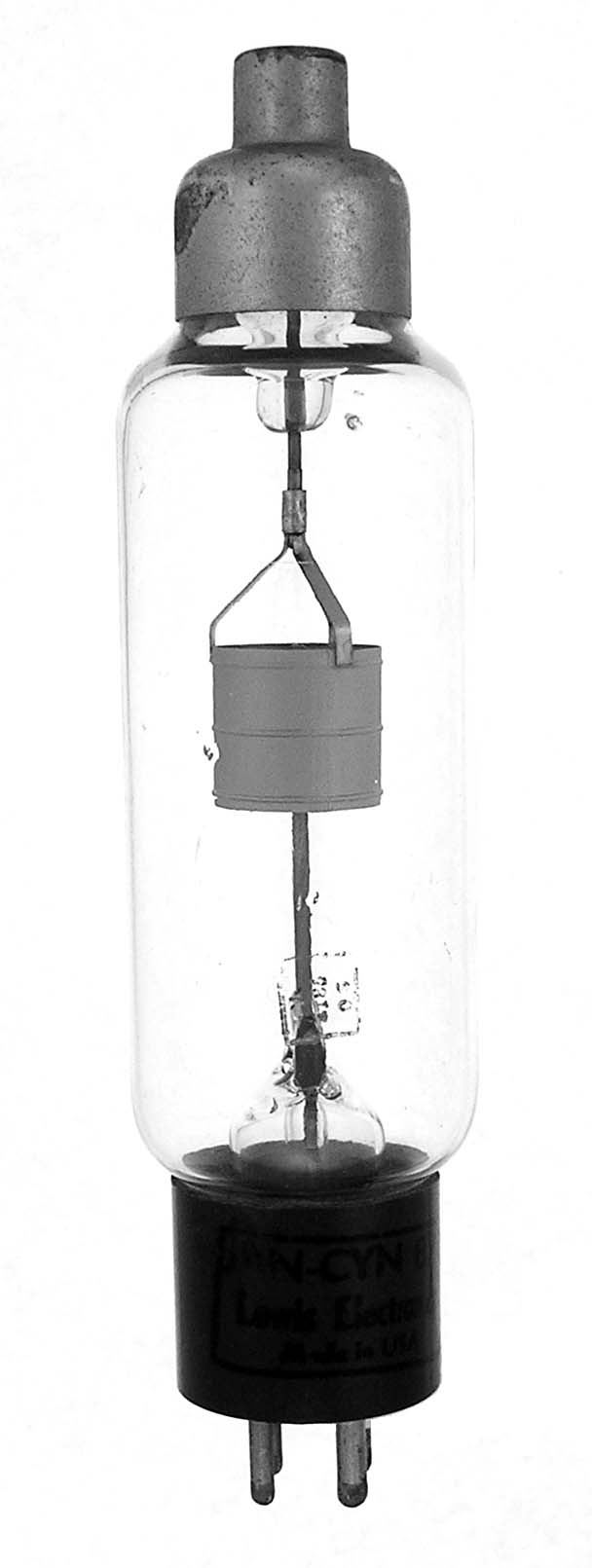

878

The 878 is a half wave rectifier designed for high voltage at low current.

Length = 7.63" Diameter = 1.81"
Max voltage = 20000 PIV
Max current = 20 ma peak
Fil voltage = 2.5
Fil current = 5 amps         GOTO INDEX
