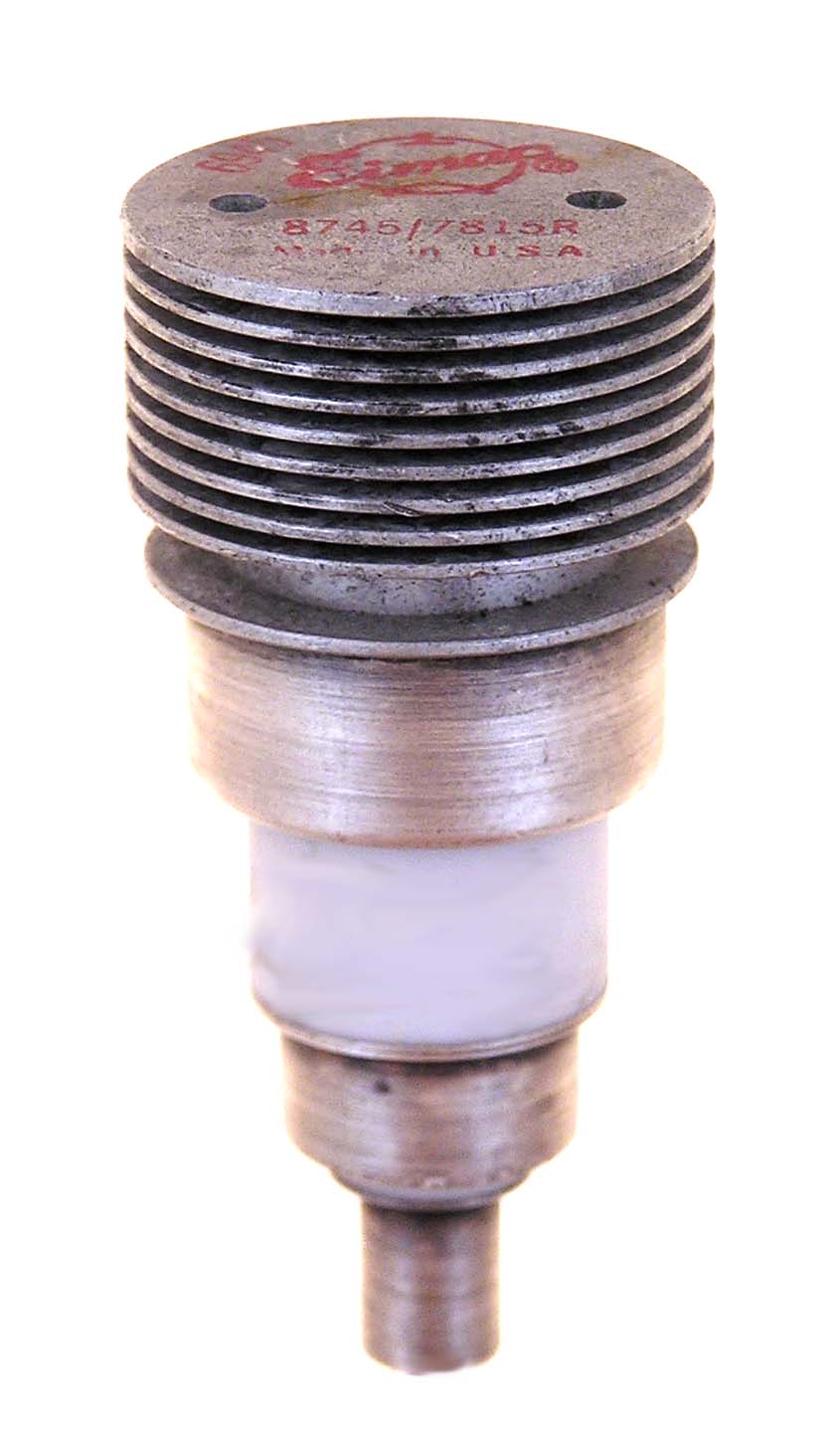

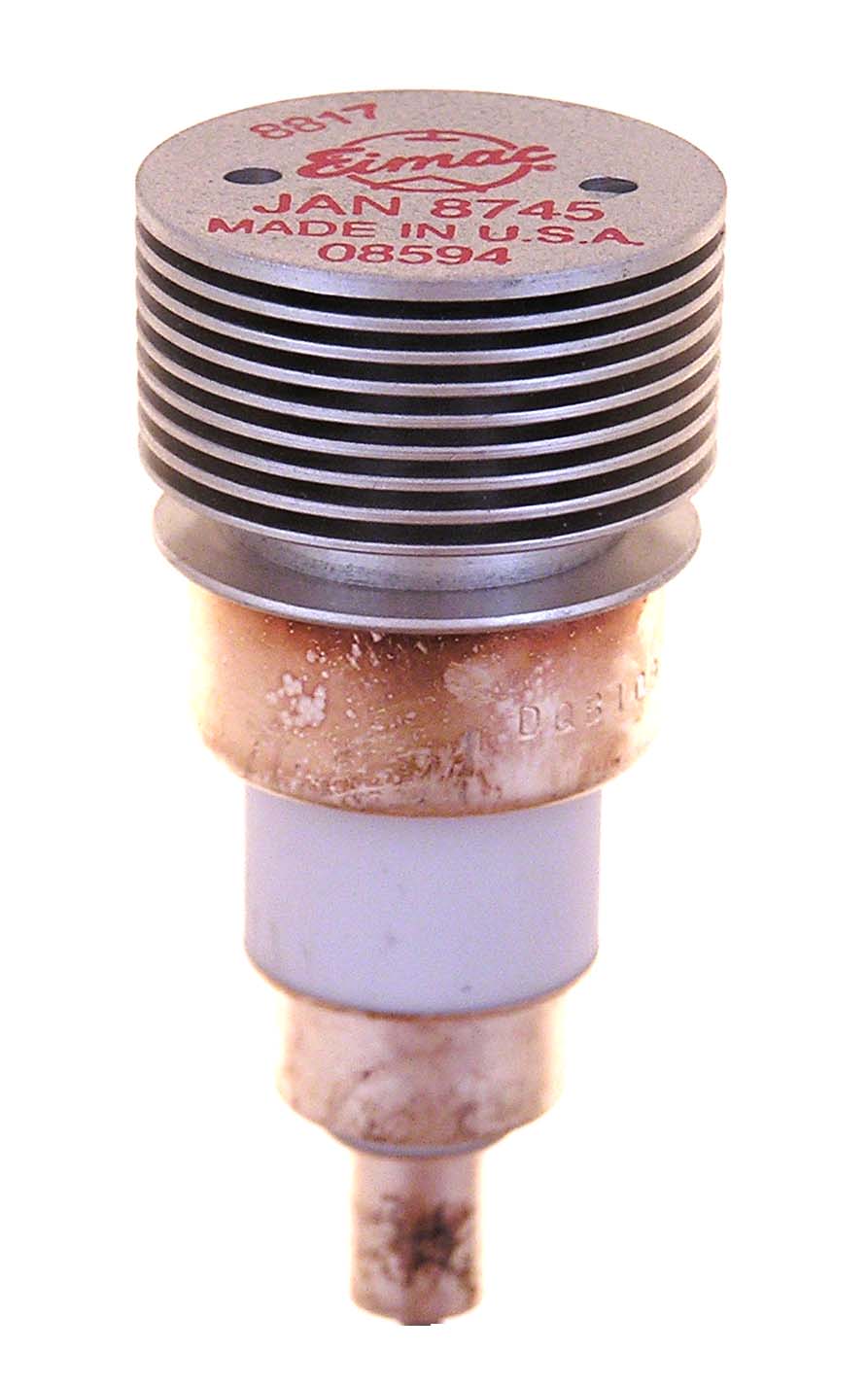

The 8745 is a 100 watt, planar triode with a full rating frequency of 3 GHz and a mu of 100 designed for pulse service. The 8745 and the 8745/7815R are the same tube. These tubes have longer ceramic insulators between the anode and grid to handle more voltage. The 8745 differs from the 7815R due to the special high voltage processing.

Length = 2.75" Diameter = 1.27"
Max voltage = 4500
Max current = 3 amps pulse
Fil voltage = 6
Fil current = 1 amp         GOTO INDEX
