8737

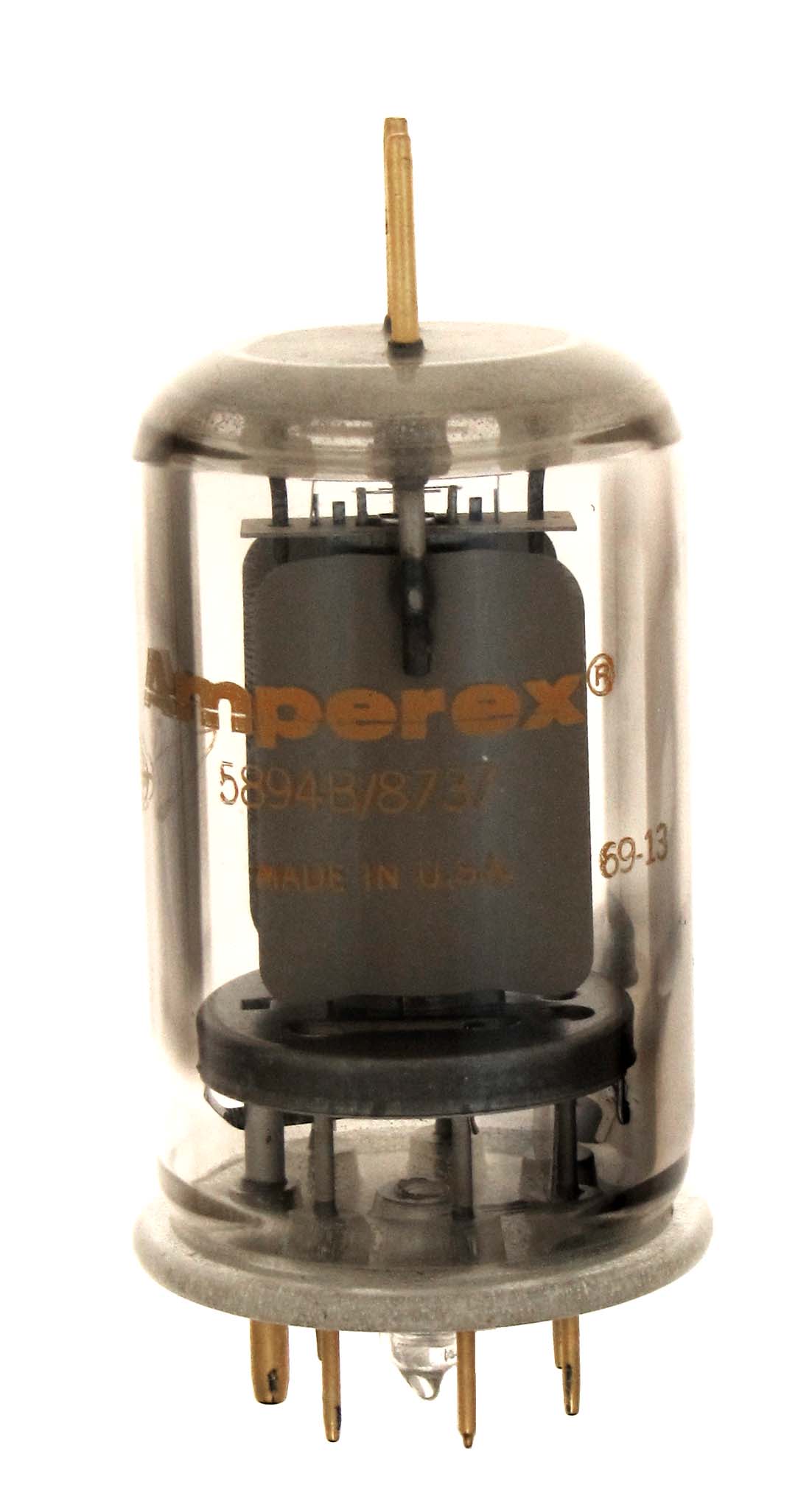

The 8737 or 5894B is a 40 watt dual tetrode designed for VHF applications with full ratings to 250 MHz and usable to 500 MHz. This tube will operate properly with filament voltages from 10 to 16 volts. Made by Amperex.

Length = 4.00" Diameter = 1.75"
Max voltage = 600
Max current = 200 ma
Fil voltage = 6.3 or 12.6 nominal
Fil current = 1.8 or .9 amps         GOTO INDEX
