872A

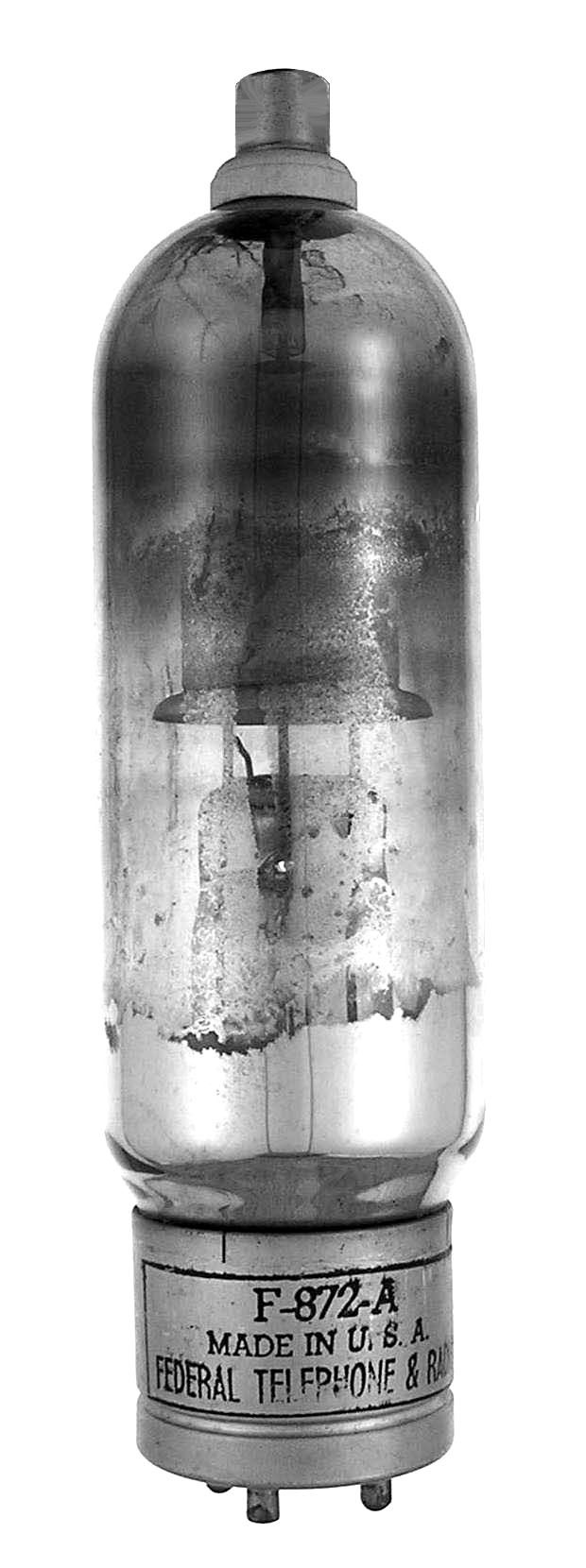

The 872A or VT-42A is a half wave mercury vapor rectifier. The second example was made by Federal (F-872A).

Length = 8.50" Diameter = 2.31"
Max voltage = 10000 piv
Max current = 5 amps peak
Fil voltage = 5
Fil current = 7.5 amps         GOTO INDEX
