8576

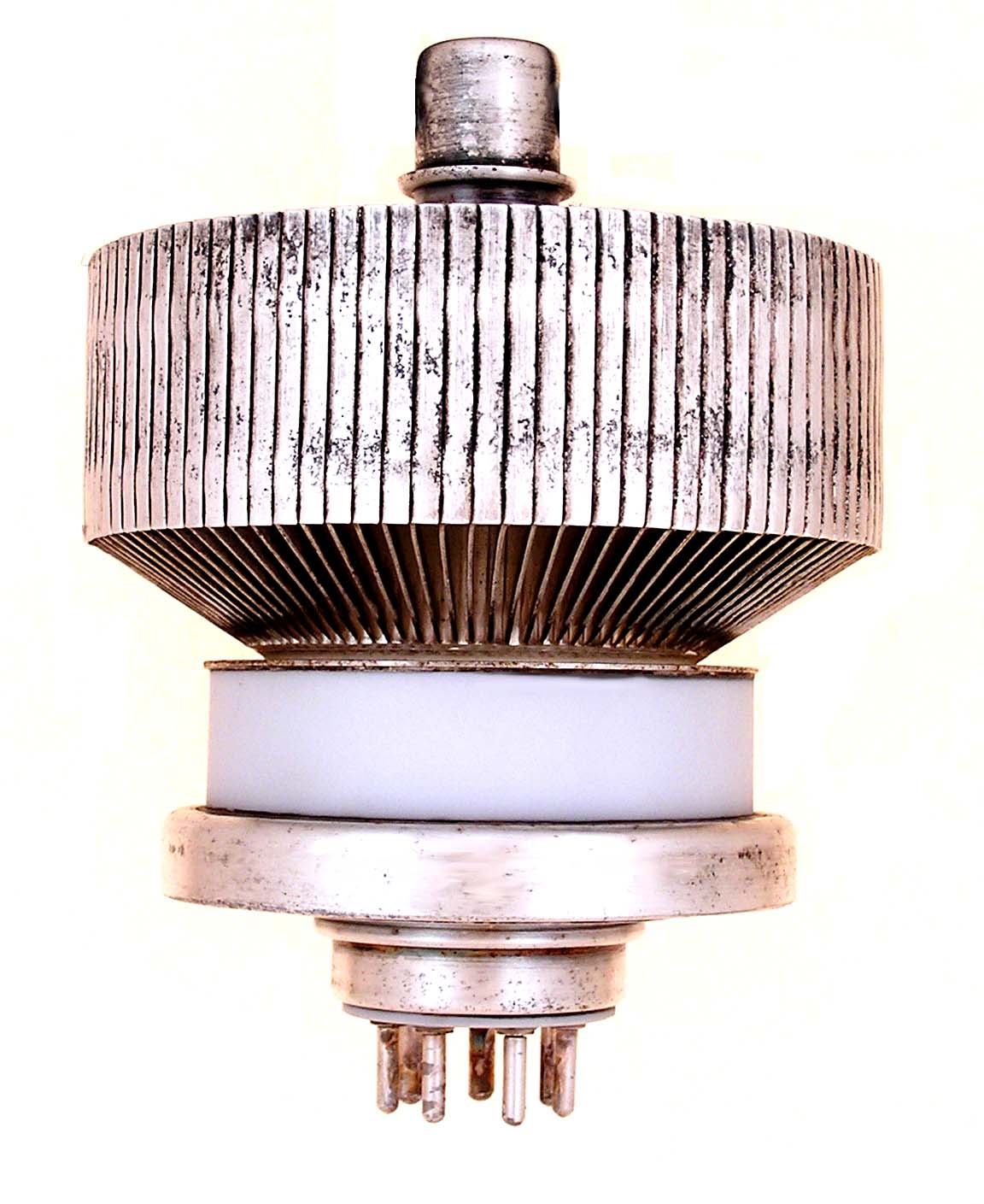

The 8576 or 264 is a 3000 watt, forced air cooled, pentode with a maximum frequency for full output of 30 MHz. Originally a Penta Labs tube that was later made by Eimac. The later Eimac tube has slightly different dimensions and characteristics.

Length = 4.50" Diameter = 4.41"
Max voltage = 5000
Max current = 2 amps
Fil voltage = 6
Fil current = 17 amps         GOTO INDEX
