8533

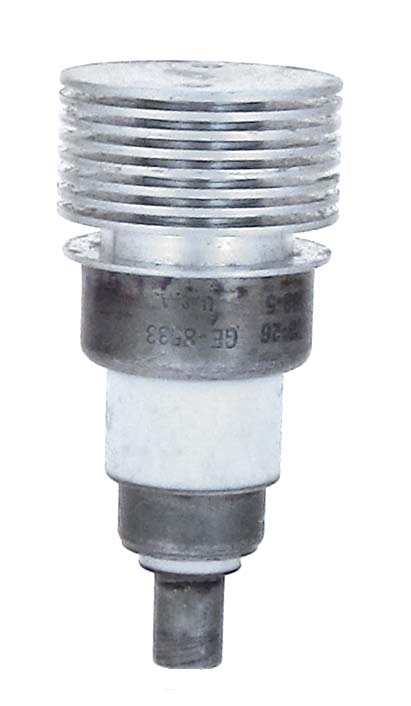

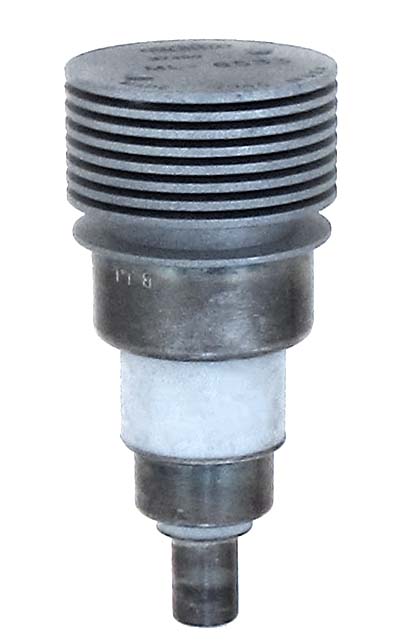

The 8533 is a 100 watt, air cooled, planar triode with a mu of 145 and full rating frequency of 3000 MHz. For pulse service, the ceramic insulators were lengthened. The first example was made by GE and the second by Machlett (ML-8533).

Length = 2.70" Diameter = 1.25"
Max voltage = 10000 pulse
Max current = 5 amps pulse
Fil voltage = 6.3
Fil current = 1.3 amp         GOTO INDEX
