850

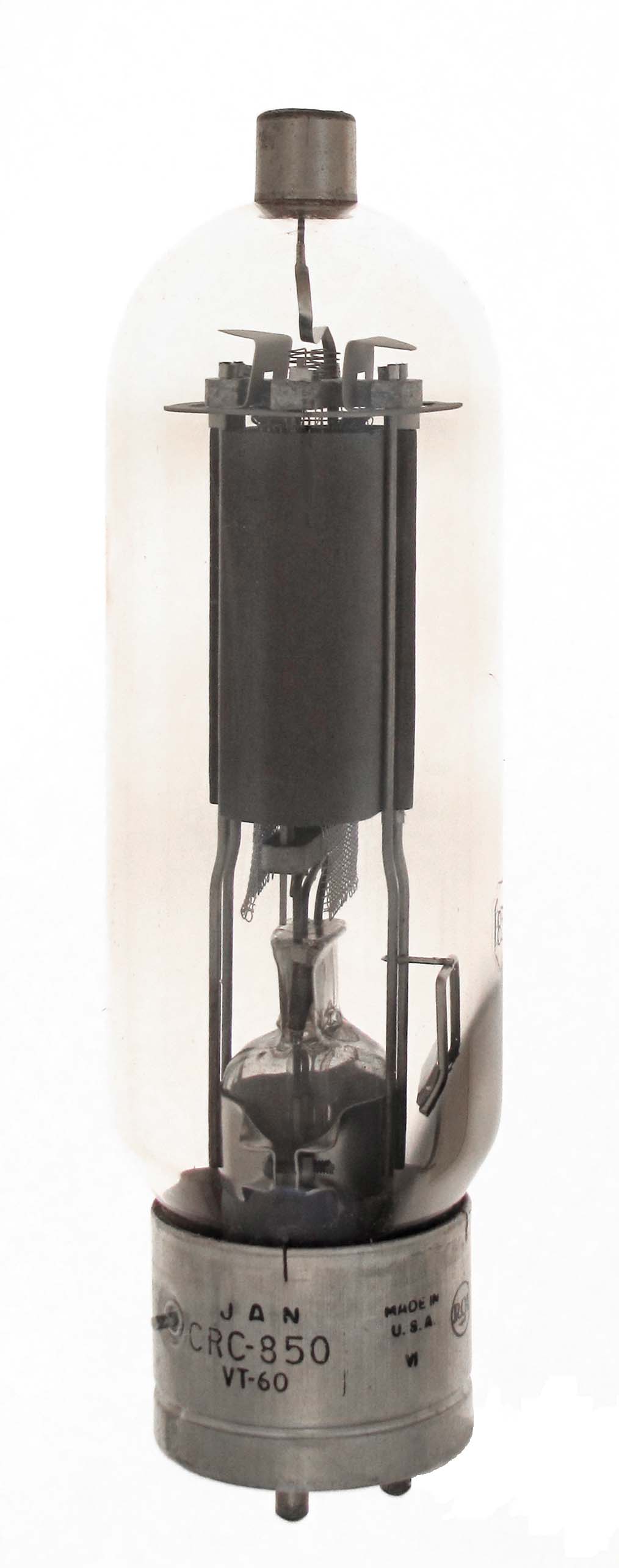

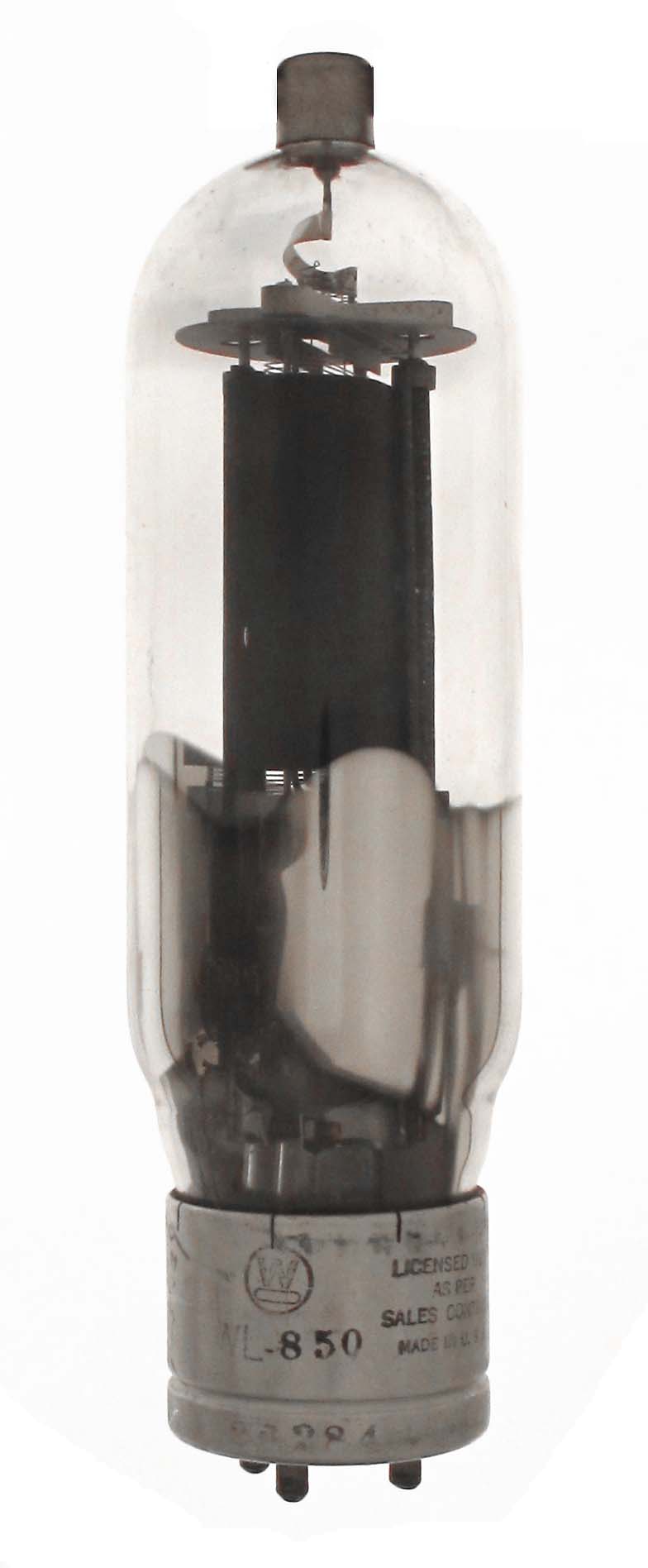

The 850 (VT-60 or 38150) is a 100 watt tetrode. Maximum frequency for full power is 13 MHz. The grid exits through the top cap.

Length = 7.87" Diameter = 2.20"
Max voltage = 1250
Max current = 220
Fil voltage = 10
Fil current = 3.25 amps         GOTO INDEX
