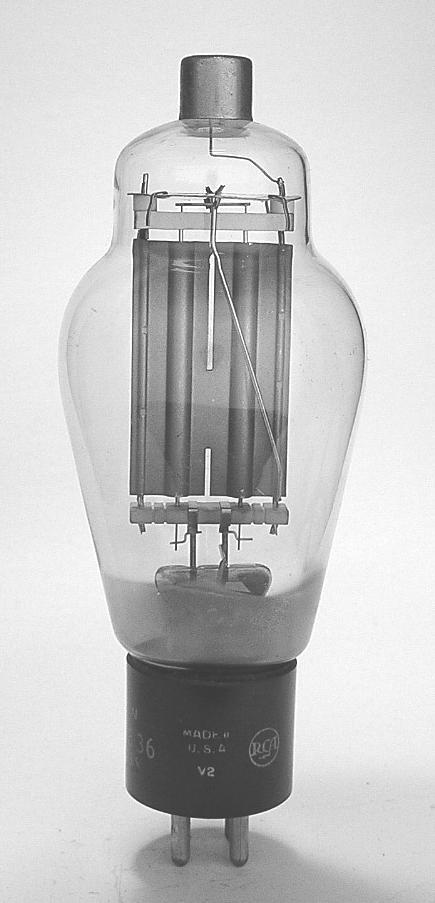

836

The 836 or VT-236 is a half wave rectifier designed to operate in a large ambient temperature range.

Length = 6.56" Diameter = 2.44"
Max voltage = 5000 PIV
Max current = 1 amp peak
Fil voltage = 2.5
Fil current = 5 amps         GOTO INDEX
