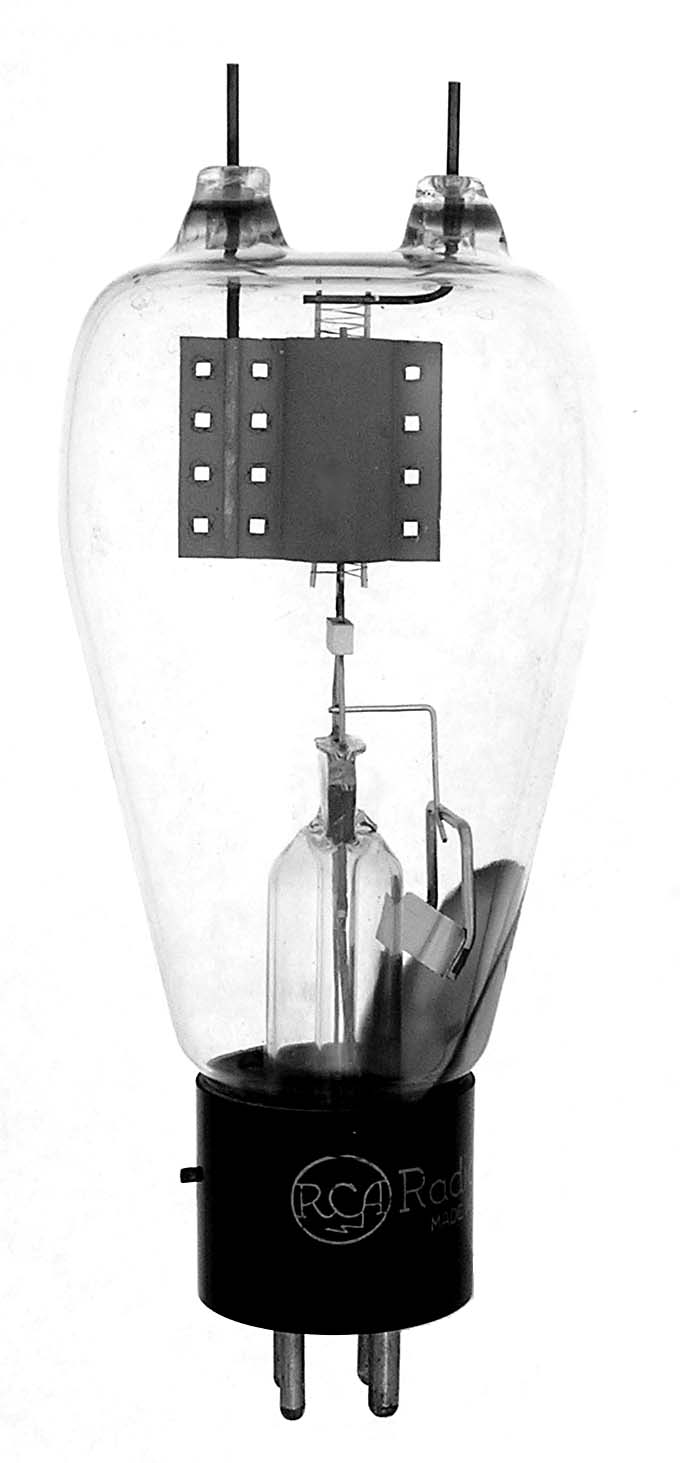

The 834 is a 50 watt triode with a mu of 10.5. It was usable up to 350 MHz. Length = 6.88" Diameter = 2.60" Max voltage = 1250 Max current = 100 ma Fil voltage = 7.5 Fil current = 3.25 amps GOTO INDEX
The 834 is a 50 watt triode with a mu of 10.5. It was usable up to 350 MHz.
