830B

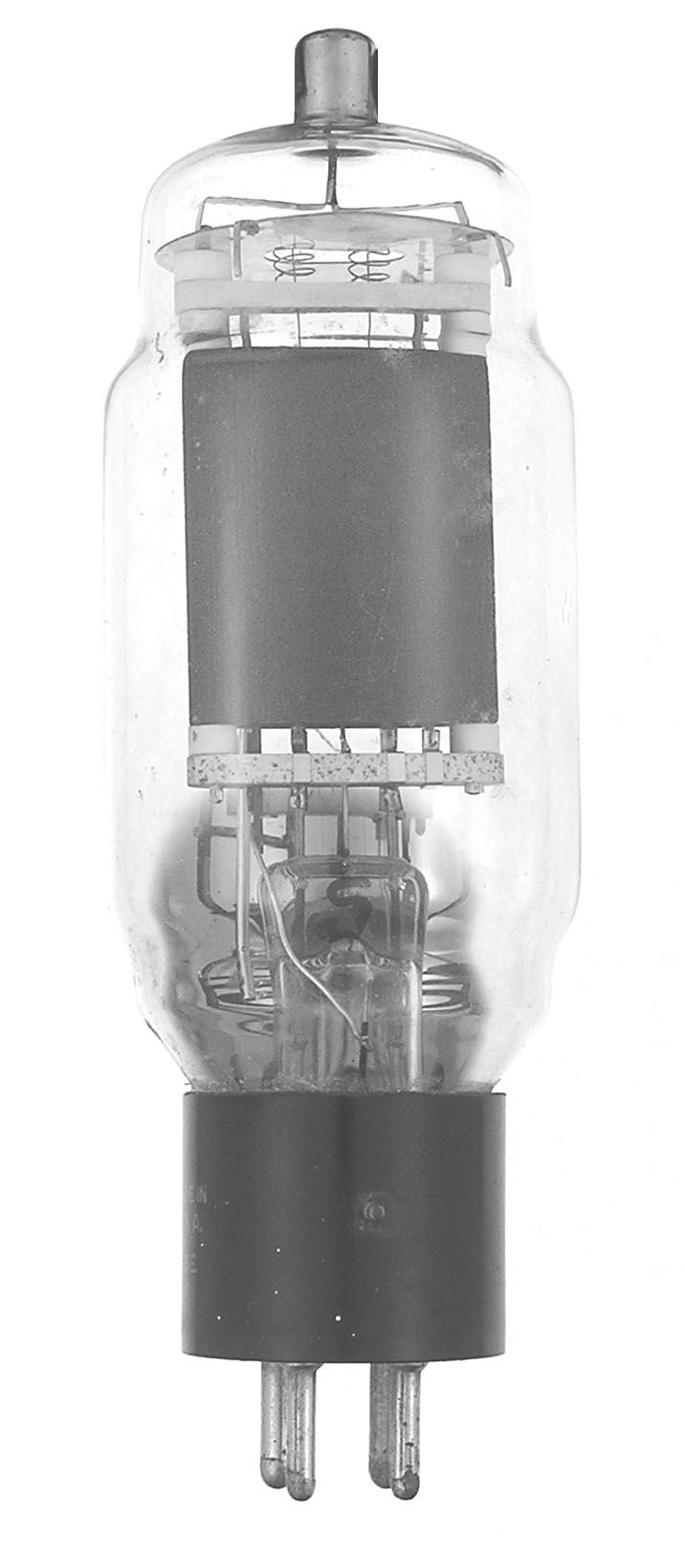

The 830B is a 60 watt triode with a mu of 25. Maximum frequency for full power is 15 MHz. The first example was made by Sylvania.

Length = 6.69" Diameter = 2.06"
Max voltage = 1000
Max current = 140 ma
Fil voltage = 10
Fil current = 2 amps         GOTO INDEX
